Okuma CROWN

Okuma CROWN

Contact us for price

Hubbard, TX

orCall 817-714-9839

Description

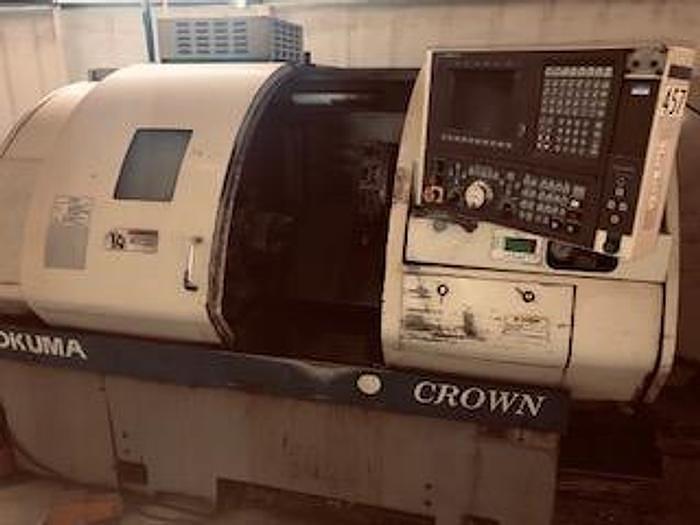

Okuma #Crown, CNC lathe, 21.6" swing, 8" chuck, 2" bar, 10.63" turn diameter, 19.68" turn length, OSP-700L Control, #7463 Swing Over Slide 15.78 Swing Over Bed 21.65 Distance Between Centers 22.29 Maximum Turning Diameter 10.63 Maximum Turning Length 19.68 X Axis Travel 7.28 Z Axis Travel 20.47 Rapid Traverse X / Z Axis 591 / 787 ipm Spindle Nose A2-6 Spindle Bore 2.44 Maximum Bar Capacity 2.05 Spindle Speed 4,200 rpm Spindle Motor 20 hp. Turret Capacity 12 Stations Tailstock Body Travel / Quill Dia. / Stroke / Taper 14.3 / 3.54 / 3.93 / MT-4 Power Source AC 220 V, Three Phase, 60 Hz Power Requirement 68 Amps Overall Dimensions 110 x 68 x 80 High Weight 8,500 lbs. Equipped With: OSP-700L Control 8″ Hydraulic Chuck Chip Conveyor Coolant System

Specifications

ManufacturerOkuma
ModelCROWN
ConditionUsed
Stock Number7463
Swing21.6"
Chuck8"
Bar capacity2.0"
