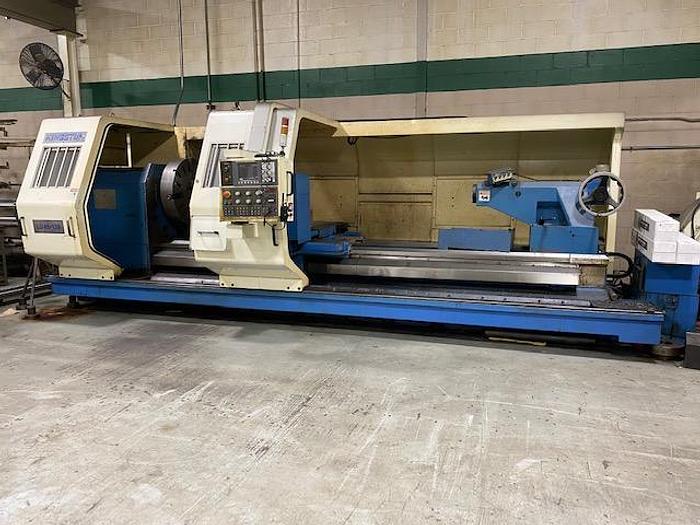

2006 Kingston LD-45-120

Specifications:

Swing Over Bed                                                         45″

Maximum Cutting Diameter                                        27.5″

Distance Between Centers                                         120″

Width of Bed                                                               28.5″

Spindle Bore                                                               6"

Spindle Motor                                                             50 hp. / 60 hp. (30 min)

Type of Spindle Nose                                                 A2-15

Speed Ranges                                         (2-Speed)  4 – 1,000 rpm

Turret (V8 Hydraulic)                                                  8 Stations

Maximum Stroke (X-Axis)                                          22.0″

Maximum Stroke (Z-Axis)                                          120.0”

Rapid Traverse (X&Z Axis)                                         236 in/min

Servo Motors                                               (X-Axis)  5.3 hp.

         (Z-Axis)  8.0 hp.

Ball Screw Size                                            (X-Axis)  1.41”, P6

         (Z-Axis)  2.48”, P12

Tailstock Quill / Dia./ Travel                                        M.T. # 6, / 9.4”/ 7.1”

Shipping Dimensions                                                  119″W x 269″L x 88.7″H Machine Weight                                                                              33,242 lbs.

Electrical Requirements                                               480V/3Ph/60Hz (100 kva)

Equipped With:

Front & Rear Chucks

Manuals
