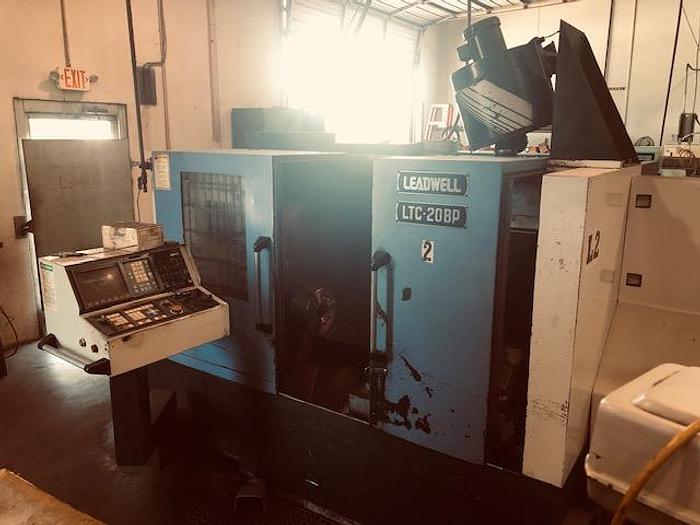

1996 Leadwell LTC-20BP CNC Lathe - Fanuc Control

1996 Leadwell LTC-20BP CNC Lathe

Fanuc Control

Specifications:

Maximum Swing Over Bed                                                      17.7”

Maximum Turning Diameter                                                     12.5”

Cross Travel (X-Axis)                                                              6.5”

Longitudinal Travel (Z-Axis)                                                    19.6”

Rapid Traverse Rate (X/Z Axis)                                                377 / 575 ipm

Turret Tool Positions                                                                12 sta.

Spindle Bore                                                                            2.5”

Bar Capacity                                                                            2.0”

Spindle Nose                                                                           A2-6

Spindle Speed Range                                                                45 – 4,500 rpm

Spindle Horsepower                                                                 20 hp.

Electrical Requirements                                                           230V/3Ph/60Hz

Approximate Machine Dimensions                                           12’L x 7’W x 7’H

Machine Weight                                                                      8,900 lbs.

Equipped With:

8” 3 Jaw Chuck                        Chip Conveyor
