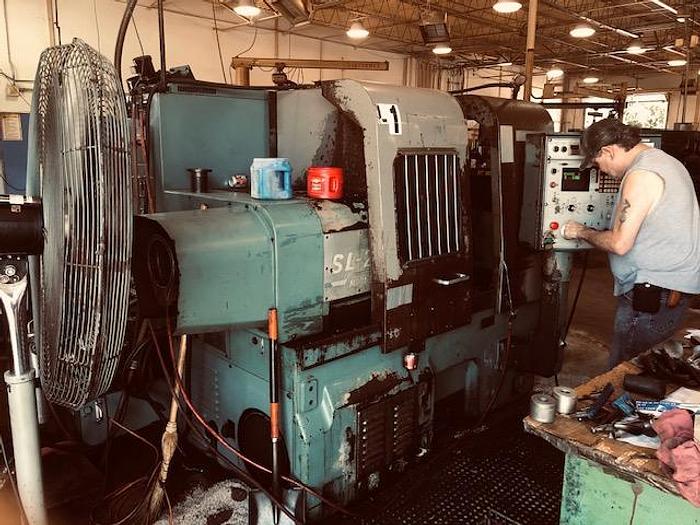

1982 Mori Seiki SL-2B CNC Lathe

Specifications:

Swing Over Bed                                                                                 22.5"

Maximum Machining Length                                                              13.7"

Rapid Traverse                                                              (X/Z)             188 / 377 ipm

Spindle Nose                                                                                      A2-8

Spindle Bore                                                                                      3.03"

Bar Capacity                                                                                      2.5"

Turret                                                                                                  10 stations

Spindle Power                                                                                    15/20 hp. (cont. / 50% duty)

Spindle Speed Range                                                                           20 - 4000 rpm

Floor Dimensions                                                                               11’L x 6’W x 6’H

Machine Weight                                                                                8,500 lbs.

Equipped With:

8" 3 Jaw Hydraulic

Chip Conveyor

Turret Tool Holders
