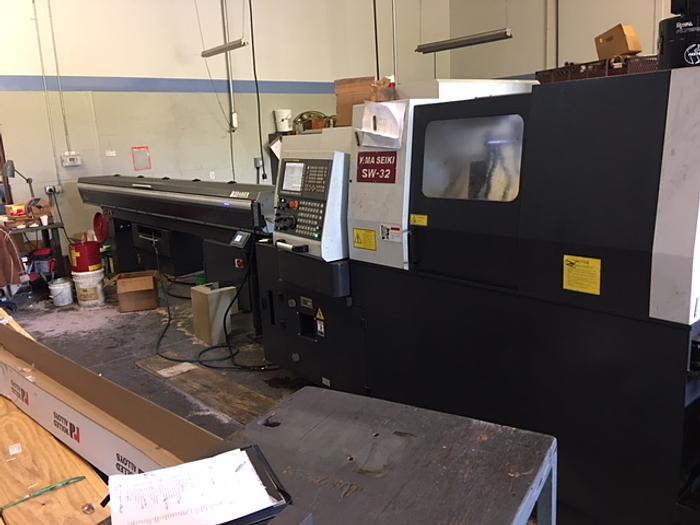

2014 Yama Seiki Model SW-32 CNC Swiss Automatic

Contact us for price

Fort Worth, TX

orCall 817-714-9839


2014 Yama Seiki Model SW-32 CNC Swiss Automatic - Fanuc 18iT-B


Turning Dia 1.26"
Bar Capacity 1.26"
Main Spindle Motor 10 hp.
Maximum Spindle Speed 7,000 rpm
Spindle Index Increment 0.001°
Sub-Spindle 7,000 rpm
Sub Spindle Motor 5 hp.
Primary Tool Carrier: OD Slide Max Tools Turning: 6 Sta.
Tool Shank Size (in.): Square: 0.625”
Second Tool Carrier: ID Slide Max Tools Turning: 4 Sta.
Tool Shank Size (inch): .787”
Third Tool Carrier: Rotary Slide Max Tools Turning: 4 Sta. Rotary: 10 Sta.
Tool Shank Size (inch): Rotary: 0.787”
Rotary Tool Spindle 5,000 rpm
Rotary Spindle Power: 1 hp
Number of Simultaneous Cutting Tools: 2
Machine Dimensions 114”L x 65”W x 70”H
Machine Weight 7,040 lbs.


Secondary Mill/Drill Function
On-Center: Standard
“C' Axis
Off-Center Cutting
'Y' Axis: Standard
Number of Axes 5

All equipment is sold “as is” with no warranty written or implied. All specifications, accessories,
standard or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection
for verification.


ManufacturerYama Seiki
ModelModel SW-32 CNC Swiss Automatic
