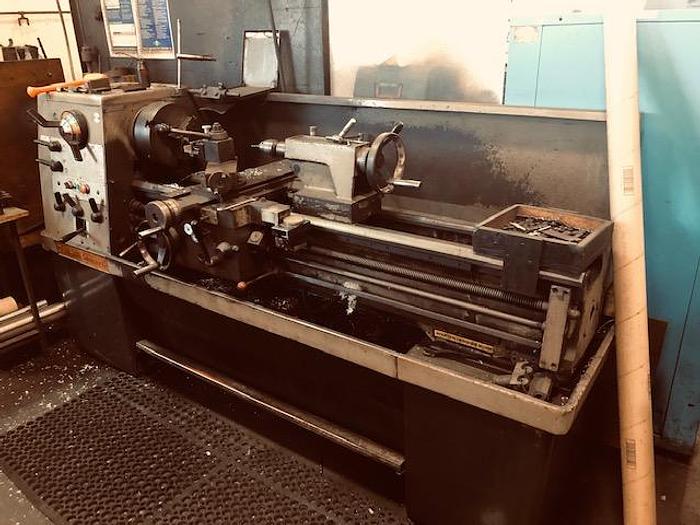

Clausing Colchester 1550

Clausing Colchester 1550

$5,500 (USD)

Grand Prairie, TX

orCall 817-714-9839

Description

Clausing Colchester Model 1550


Specifications:


Swing over Bed                                                                                   15.25″

Swing over Cross Slide                                                                        09.50″

Distance between Centers                                                                    50″

Bar Capacity                                                                                       2.13″

Spindle Nose                                                                                      D1-6 Camlock

Hole thru Spindle                                                                                2.18″

Spindle Center                                                                                     4 MT

Speeds:                                                                                                25 – 2,000 rpm

US Standard Threads (45)                                                                     2-72

Metric Threads (39)                                                                              .2-14

Longitudinal Feeds (45)                                                                       .0015″ – .040” (ipr)

Cross Feeds                                                                                        .00075″ – .020″ (ipr)

Leadscrew Diameter                                                                            1.25”

Cross Slide Travel                                                                               9.25″

Tailstock Spindle Diameter                                                                  2.31″

Electrical Requirements                                                                       230V/3ph/60hz

Floor Dimensions                                                                                96″ x 38″ x 49″

Machine Weight                                                                                  3,300 lbs.



Equipped With:


10” 3 Jaw Chuck                      Aloris Tool Post                       Foot Brake

Specifications

ManufacturerClausing Colchester
Model1550
ConditionUsed
