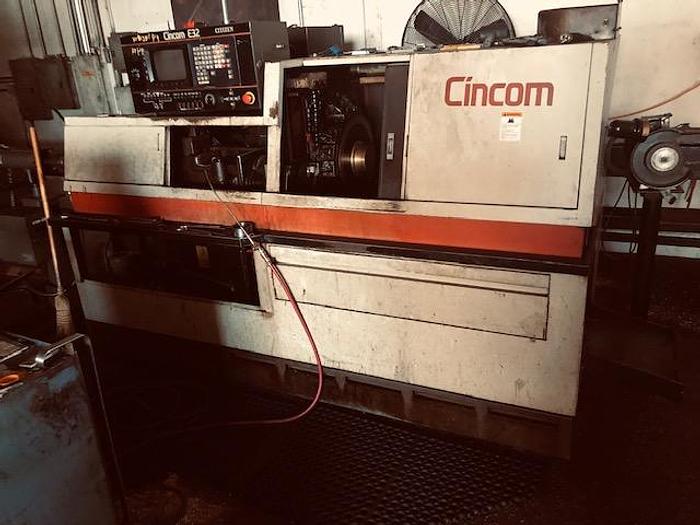

2005 Citizen E-32 CNC Swiss Turn

2005 Citizen E-32 CNC Swiss Turn

$40,000 (USD)

Dallas, TX

orCall 817-714-9839

Description

Specifications:


No. of Controlled Axes: 6 (X1, X2, Z1, Z2, Z3 C1)

Simultaneous Six Axis Control (Three Systems)

Maximum Machining Diameter: 1.26

Maximum Machining Length: 12.6"

Spindle Speed: 130-6000 RPM

Rotary Tools:

Maximum Drilling / Threading Diameter: .393" / 5/16"

Spindle Speed: 225-4460 RPM

Back-Work:

Maximum Chucking Diameter of Back-Work Spindle:1.26"

Maximum Back-Work Length: 12.5"

Maximum Drilling / Threading Diameter: .5" / 1/2"

Back-Work Spindle Speed: 150-5000 RPM

No. of Tools Installable: 20

No. of Turret Indexes: 10 x 2 Per Turret

Tool Size: 3/4 x 3/4 x 3.5

Main Spindle Motor Drive: 7.5 HP

Power Supply: 15 KVA

Required Floor Space: 61"x 120"

Weight (Approx.): 8800 lbs.


Specifications

ManufacturerCitizen
ModelE-32 CNC Swiss Turn
Year2005
ConditionUsed
