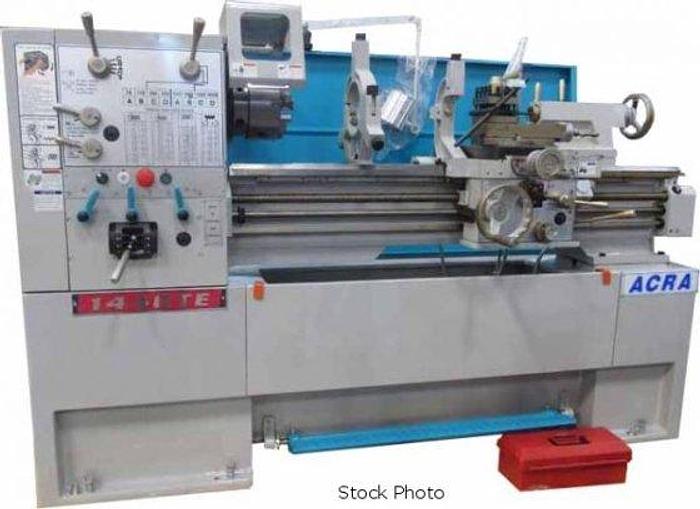

2020 NEW ACRA 1440-TE ENGINE LATHE 1440 TE

Swing over bed: 14 3/16"

Swing over cross slide: 8 3/8"

Swing in gap: 21"

Distance between centers: 40"

Bed width: 10 1/4"

Spindle nose: D1-6

Spindle bore: 2 1/16"

Taper of spindle: MT # 6

Spindle speeds 8 Speed Changes

Spindle speeds - range: 70-1800 RPM

Cross slide travel: 8 11/16"

Compound slide travel: 5 1/2"

Inch threads: 2 - 72 TPI

Metric threads: 0.2 - 14 mm

Longitudinal feeds: 0.002 - 0.067"/rev

Cross feeds: 0.001 - 0.034"/rev

Quill diameter: 2"

Quill travel: 6"

Quill taper: MT # 4

Spindle drive motor: 5 HP

Voltage: 230/460V ~ 3 Phase

Dimensions 82"L x 32"W x 48"H

Shipping weight: 3,600 LBS

Standard Accessories:

8" 3 Jaw Chuck

10" 4 Jaw Chuck

Steady & Follow Rest

Halogen Light

Full Length Splash Guard

Coolant System

4 Way Tool Holder
