2020 ACRA 1440-C ENGINE LATHE 1440-C

2020 ACRA 1440-C ENGINE LATHE 1440-C

Contact us for price

California

orCall 817-714-9839

Description

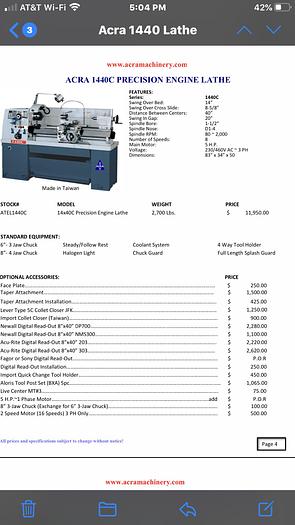

NEW ACRA 1440C PRECISION GAP BED ENGINE LATHE CLAUSING

COLCHESTER TYPE WITH TOOLING <TAIWAN>


Specifications:

Capacity: 14”/20” x 40”

Swing over Bed: 14-1/8″

Distance Between Centers: 40″

Swing over Cross Slide: 8-5/8″

Swing over Gap: 20-7/8″

Width of Bed: 9”

Spindle Nose to Gap: 6-3/8”

Cross Slide Travel: 7″

Compound Travel: 4″

Compound Slide Travel: 4″

Spindle Nose: D1-4

Spindle Bore: 1.-5/8″

Spindle Taper: MT #5

Spindle speeds: (8) 80-2,000 RPM

Tail-stock Taper: MT #3

Tail-stock barrel travel: 4-1/2″

Tail-stock barrel diameter: 1-7/8″

Inch Threads: (45) 2 ~ 72 TPI

Metric Threads: (39) 0.2-14 mm

Modular Pitches: (18) 0.3 – 3.5 MP

Diametrical Pitches: (21) 8-44 DP

Longitudinal Feed Range: 0.002 to 0.067 IPR

Cross Feed Range: 0.001 to 0.034 IPR

Number of Feed selections: 17

Coolant Motor size: 1/8 HP

Spindle Motor size: 5 HP

Voltage: 230/460V, 3-PH, 60 cycle


Standard Equipment:

• Allen-Bradley® controls.

• Signature South Bend three V-way bed.

• 6″ 3-Jaw scroll chuck w/ D1-5 back plate

• 8″ 4-Jaw independent chuck D1-5

• 10″ Faceplate D1-4

• Safety Chuck Guard with microswitch shut-off

• Steady Rest with roller tips

• Two MT #3 Dead Centers

• Threading Dial Indicator

• Six Leveling Pads

• NTN Japanese Spindle Bearings

• 4-Way Tool Post

• Halogen lamp

• Complete Coolant system

• Micrometer Carriage stop

• Spindle Sleeve MT #5/MT #3

• Full Length Back Splash

• Foot Brake

• Front Removable pull-out Chip Tray

• Tool set and box

• Spindle Nose to Gap: 6-3/8″

• Follow rest

• Operation manual and parts list EXTRA LONG SADDLE W/ GIBS




Specifications

ManufacturerNEW ACRA 1440-C ENGINE LATHE
Model1440-C
Year2020
ConditionNew
