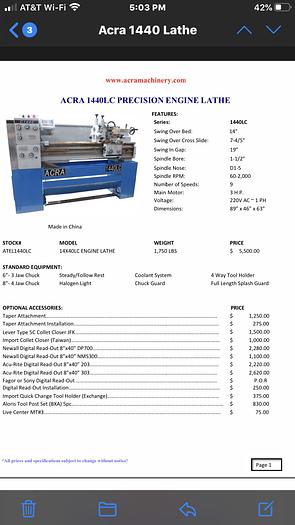

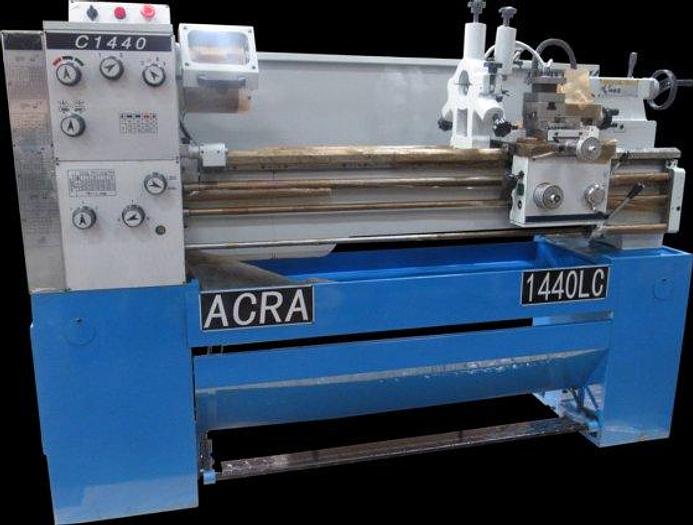

2020 NEW ACRA ENGINE LATHES - 14" x 40" 1440-LC

Specifications

Swing over bed 14"

Swing over cross slide 7.80"

Swing in gap 19"

Length of saddle before faceplate 6.31"

Hole thru spindle 1.50"

Spindle nose D1-5

Spindle speeds and steps 60-2,000 RPM (9 Steps)

Metric threads(20) 0.25 ~ 9mm

Inch threads 2~38mm (32)/ 74~4mm (33)

Module thread range 0.5 ~ 9 (17)

Longitudinal feed range 0.03-0.423 mm/r

Cross feed range 0.015-0.21 mm/r

Horsepower 3 HP

Voltage 220V AC ~ 1 PH

Machine Weight 1,750 lbs.

Dimensions 89" x 46" x 63"
