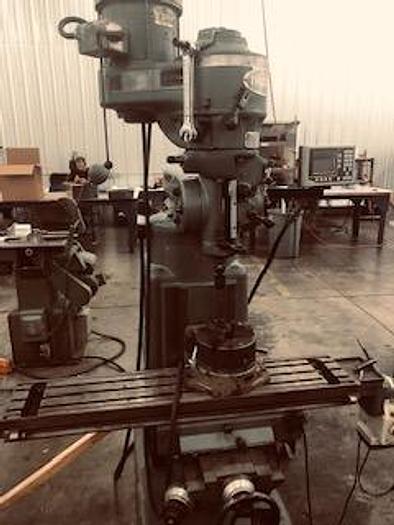

Index Milling Machine

Index Milling Machine

$3,000 (USD)

Grand Prairie, TX

orCall 817-714-9839

Description

Index Milling Machine


Specifications:


Table Size                                                                                        9” x 49”

Longitudinal Travel                                                                            34”

Cross Travel                                                                                      12.5”

Vertical Knee Travel                                                                          16.5”

Center of Table to Column Face -Max:                                                 17.5”

Center of Table to Column Face - Min:                                                  5”

Quill Travel:                                                                                        5-1/4”

Head Tilt - Forward & Backward / Head Rotate                                     45 deg. / 90 deg.

Turret Rotation on Column:                                                                 360 deg.

Spindle Nose to Top of Table -                                                              0 - 15.25”

Center of Spindle to Column Face -                                           Max:            30.5”

Center of Spindle to Column Face -                                           Min:    6”

Spindle Taper (uses drawbar):                                                               R-8

Spindle Motor (continuous duty):                                                          3 hp.

Spindle Speeds                                                                                    400 - 4200 rpm

Quill Feeds (3) - Per Spindle Revolution:                                              0015”, 0.003”, 0.006”


Equipped With:


Digital Readouts                                 Power Feed


Specifications

ManufacturerIndex Milling Machine
ConditionUsed
