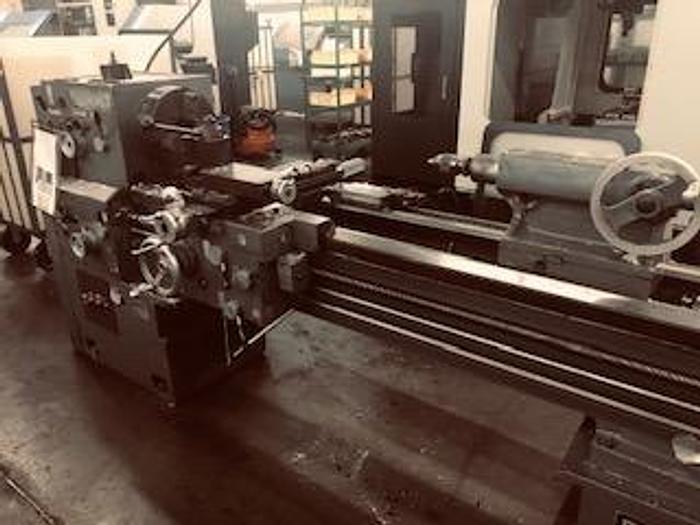

1978 Summit Engine Lathe - Model 19-4 (20" x 80") 4" Bar Capacity 19-4

1978 Summit Engine Lathe - Model 19-4 (20" x 80") 4" Bar Capacity 19-4

$9,500 (USD)

Dallas, TX

orCall 817-714-9839

Description



Specifications:


Swing over bed                                                                                   20"

Swing over cross slide                                                                         13"

Swing in gap                                                                                       27.12”

Bed width                                                                                            13-4/5"

Distance between centers                                                                     80"

Spindle hole                                                                                         4-1/8"

Spindle nose                                                                                       D1-8 camlock

Spindle speeds                                                                 (18 speeds)  20 - 1500 rpm

Inch threads                                                                   (36 changes)  4 - 56 tpi

Metric threads                                                                (24 changes)            0.5mm - 7 mm

Tailstock taper / Dia. / Travel                                                               #5 MT / 2.75” / 6”

Main motor power                                                                                10 HP

Electrical Requirements                                                                       220V/440V/3Ph/60Hz

Machine Weight                                                                                  6,000 lbs.

Shipping Dimensions                                                       (L x W x H)            130" x 45" x 62"



All equipment is sold “as is” with no warranty written or implied. All specifications, accessories, standard

or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection for verification.


Specifications

ManufacturerSummit Engine Lathe - Model 19-4 (20" x 80") 4" Bar Capacity
Model19-4
Year1978
ConditionUsed
