Okuma Crown

Okuma Crown

$12,500 (USD)

Mansfield, TX

orCall 817-714-9839

Description

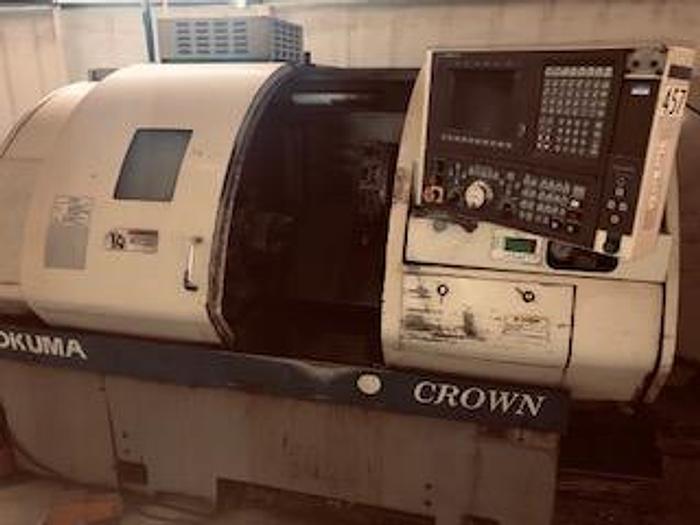

Okuma Crown CNC Lathe

OSP-700L Control


Specifications:


Swing Over Slide                                                                                15.78″

Swing Over Bed                                                                                  21.65″

Distance Between Centers                                                                   22.29″

Maximum Turning Diameter                                                                10.63″

Maximum Turning Length                                                                   19.68″

X Axis Travel                                                                                     7.28″

Z Axis Travel                                                                                      20.47″

Rapid Traverse X / Z Axis                                                                   591 / 787 ipm

Spindle Nose                                                                                       A2-6

Spindle Bore                                                                                       2.44″

Maximum Bar Capacity                                                                       2.05″

Spindle Speed                                                                                     4,200 rpm

Spindle Motor                                                                                      20 hp.

Turret Capacity                                                                                    12 Stations

Tailstock Body Travel / Quill Dia. / Stroke / Taper                                14.3″ / 3.54” / 3.93” / MT-4

Power Source                                                                                      AC 220 V, Three Phase, 60 Hz

Power Requirement                                                                              68 Amps

Overall Dimensions                                                                             110″ x 68″ x 80″ High

Weight                                                                                               8,500 lbs.


Equipped With:


8" Hydraulic Chuck                              Chip Conveyor                        Coolant System

Specifications

ManufacturerOkuma
ModelCrown
ConditionUsed
