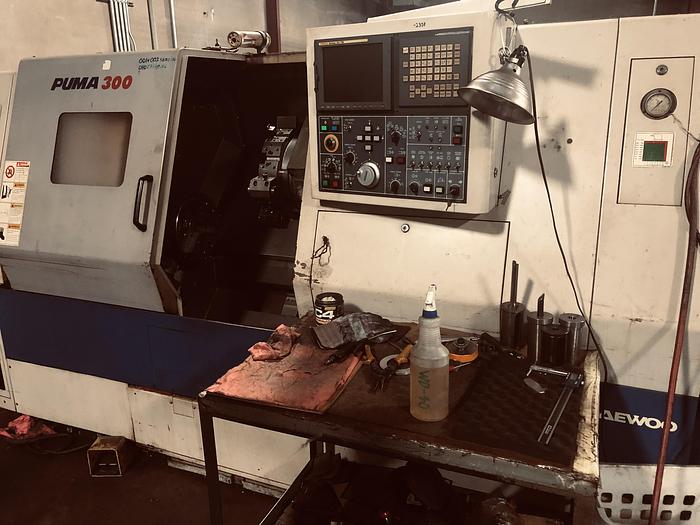

2006 Doosan Puma 300C

Specifications:

Swing Over Bed                                                                                  22.4″

Swing Over Carriage                                                                           17.7″

Distance Between Centers                                                                   27.8″

Maximum Turning Diameter                                                                15.7″

Maximum Turning Length                                                                   24.8″

X Axis Travel                                                                                     11.1″

Z Axis Travel                                                                                      26.8″

Rapid Traverse X Axis                                                                        787 ipm

Rapid Traverse Z Axis                                                                         945 ipm

Spindle Nose                                                                                       A2-11

Spindle Bore                                                                                       4.5″

Maximum Bar Capacity                                                                       4.05″

Spindle Speed                                                                                      0 – 2800 rpm

Spindle Motor                                                                                      35 hp.

Turret Capacity                                                                                    12 Stations

Turret Index Time                                                                               0.15 Second

Tailstock Taper                                                                                   MT - 4

Tailstock Quill Dia. / Travel                                                                3.97″ / 4.7”

Electrical Requirements                                                                       230V/3Ph/60Hz (45 kva)

Overall Dimensions                                                                             130″L x 77″W x 80”H

Machine Weight                                                                                  12,600 lbs.

Equipped With:

12” 3 Jaw Hydraulic Chuck

Chip Conveyor

Turret Tool Holders

Under Power - In Plant
