1999 Hitachi Seiki HVP-23J CNC Lathe - Seicos J300L Multi Control (Yaskawa)

$8,000 (USD)

Dallas, TX

orCall 817-714-9839

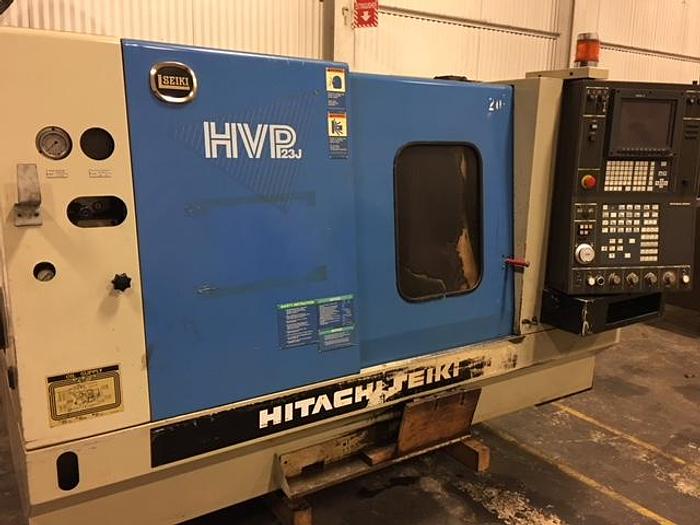

1999 Hitachi Seiki Model HVP-23J CNC Lathe Seicos J300L Multi Control (Yaskawa)


Swing Over Bed 17.7"
Maximum Turning Diameter 13.38"
Maximum Turning Length 23.6"
Spindle Bore 3"
Bar Capacity 2.6"
X Axis Travel 9"
Z Axis Travel 24.8"
Spindle Speed Range 30 ~ 4,000 rpm
Spindle Nose A2-8
Turret Tool Positions 10 Stations (KV Type)
Rapid Traverse (X&Z) 1181 ipm
Tailstock Taper / Stroke MT #5 / 20.4"
Spindle Motor 20 hp.
Machine Weight 10,560 lbs.

Equipped With:

Collet Chuck;
Tool Setter;
Chip Conveyor;

All equipment is sold “as is” with no warranty written or implied. All specifications, accessories, standard
or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection for verification.


ManufacturerHitachi Seiki
ModelHVP-23J CNC Lathe - Seicos J300L Multi Control (Yaskawa)
