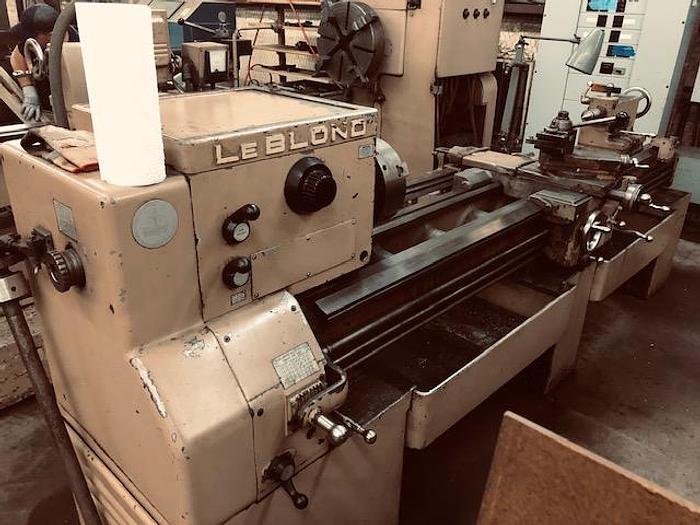

Leblond Regal 19x54 Precision Engine Lathe

Leblond Regal 19x54 Precision Engine Lathe

$9,500 (USD)

Fort Worth, TX

orCall 817-714-9839

Description

LEBLOND REGAL ENGINE LATHE (19" x 54") SPECIFICATIONS SWING OVER BED: 19-1/4″ SWING OVER CROSS SLIDE: 12-1/4” DISTANCE BETWEEN CENTERS: 54” SPINDLE SPEEDS (12): 38 – 1,500 RPM SPINDLE HOLE: 1-49/64” SPINDLE NOSE, L-1 CROSS SLIDE TRAVEL (WITH TAPER ATTACHMENT): 9-5/8” COMPOUND REST TRAVEL: 4-3/8” FEED CHANGES: 48 SELECTIONS FEED RANGE, INCH: .0018 – .104 IPR FEED RANGE, METRIC: .05 – 2.6 MMPR THREADS, INCH: 2 - 112 TPI THREAD, METRIC: .25 - 14 TPM TAILSTOCK CENTER: #4 MT DIMENSIONS: 108” LR X 44” FB X 60” H ELECTRICS: 220 VOLTS, 3 PH, 60 CYC MACHINE WEIGHT: 4,500 LBS. EQUIPPED WITH: ALORIS POST W/ HOLDERS 3 JAW CHUCK 5C COLLET CLOSER TAPER ATTACHMENT STEADY REST TRAV-A-DIAL

Specifications

ManufacturerLeblond
ModelRegal 19x54 Precision Engine Lathe
ConditionUsed
