2000 Star SA-12 CNC Swiss Screw Machine - Excellent Condition

Contact us for price

Texas

orCall 817-714-9839

Description

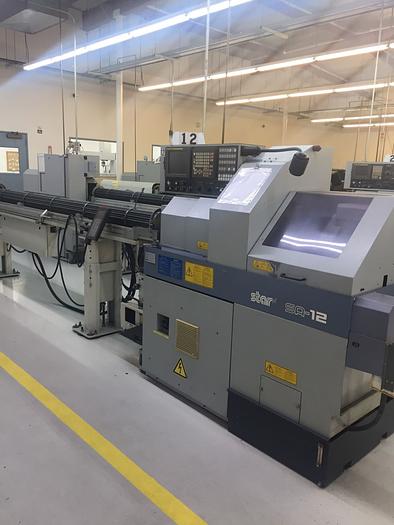

2000 Star Model SA-12 CNC Swiss Screw Machine

Specifications:

Turning Diameter Max: 0.625”
Turning Length (in.) Max: 5.310”
Bar Capacity (in.) Std: 0.500”
Main Spindle: rpm 500 – 12,000 rpm
Main Spindle 5 hp.
Index Increment: 1°
Sub-Spindle: (Standard)
Primary Tool Carrier: SLIDE
Max Tools Turning: 6
Tool Shank Size (in.): Square: 0.393”
Second Tool Carrier: SLDE
Max Tools Turning: 2
Rotary Tools 2
Tool Shank Size (inch): Square: 0.393 Rotary: 0.500
Third Tool Carrier: SLIDE
Max Tools Turning: 4
Rotary: 4
Tool Shank Size (inch): Square: 0.393 Rotary: 0.500
Rotary Tool Spindle: 8,000 rpm
Rotary Tool Power: 1 hp.
Simultaneous Cutting Tools 3
Secondary Mill/Drill Function
Number of Axes: Standard: 5
Rapid Rate X1 708 ipm Y1 Std.708 ipm
Z1 708 ipm Z2 708 ipm
Machine Dimensions 82”L x 30”W x 65”H
Machine Weight 3,740 lbs.

Equipped With:

LNS Barfeeder
Manuals

All equipment is sold “as is” with no warranty written or implied. All specifications, accessories, standard
or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection for verification.

Specifications

ManufacturerStar
ModelSA-12
Year2000
ConditionUsed
