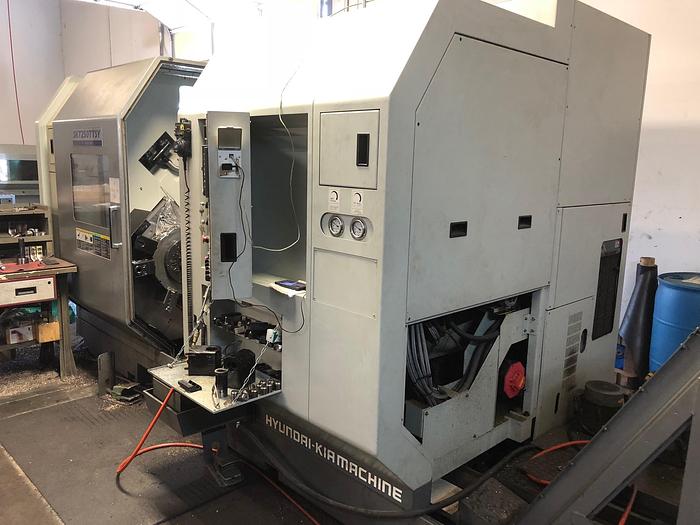

2010 Hyundai Kia Model SKT-250-TTSY CNC Lathe - Fanuc 18i-TB

2010 Hyundai Kia Model SKT-250-TTSY CNC Lathe - Fanuc 18i-TB

Contact us for price

Waco, TX

orCall 817-714-9839

Description

Specifications: Swing Over Bed / Carriage 30.7" / 27.5" Maximum Turning Diameter (Upper / Lower) 15.4" / 11.8" Maximum Machining Length 36.22" X1-Axis Travel 10.63” X2-Axis Travel 7.48” Z1-Axis Travel 36.22” Z2-Axis Travel 36.22” Y-Axis Travel +/- 2.4” B-Axis Travel 36.6” C-Axis Travel .001 deg. C Axis Rapid Traverse 200 rpm Rapid Traverse 945 ipm Main Spindle Nose A2-6 Spindle Bore 3.1” Bar Capacity 2.56" Main Spindle Speed Range 30 – 4,000 rpm Sub Spindle Nose A2-6 Sub Spindle Speed 5,000 rpm Sub Spindle Motor 33.5 hp. Bar Capacity 2.56” Turret Positions Turret 1 12 Sta. Turret 2 12 Sta. Milling Spindle Maximum Speed 5,000 rpm Milling Spindle Power 5 / 7.5 hp. Spindle Motor 33.5 hp. Electrical Requirements 240V/3Ph/60Hz Floor Dimensions (LxWxH) 15’ x 7’ x 8’4” Machine Weight 24,251 lbs. Equipped With: (2) 10" Samchully Hydraulic Chucks Chip Conveyor 2) Axial Holders 2) Radial Holders All equipment is sold “as is” with no warranty written or implied. All specifications, accessories, standard or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection for verification.

Specifications

ManufacturerHyundai Kia
ModelSKT-250-TTSY
Year2010
ConditionUsed
