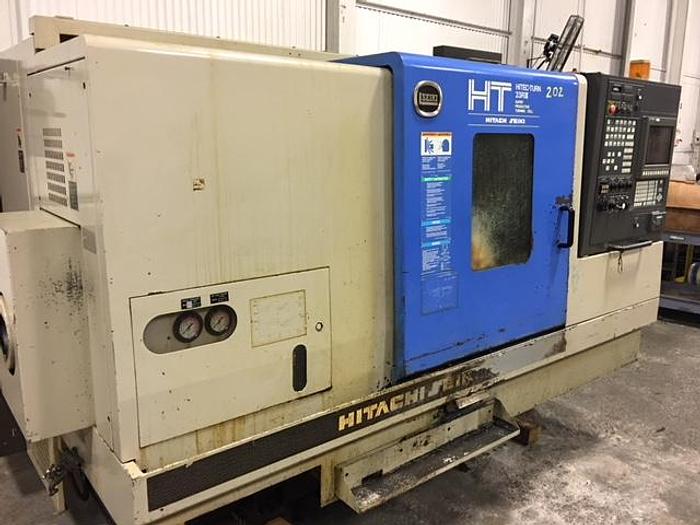

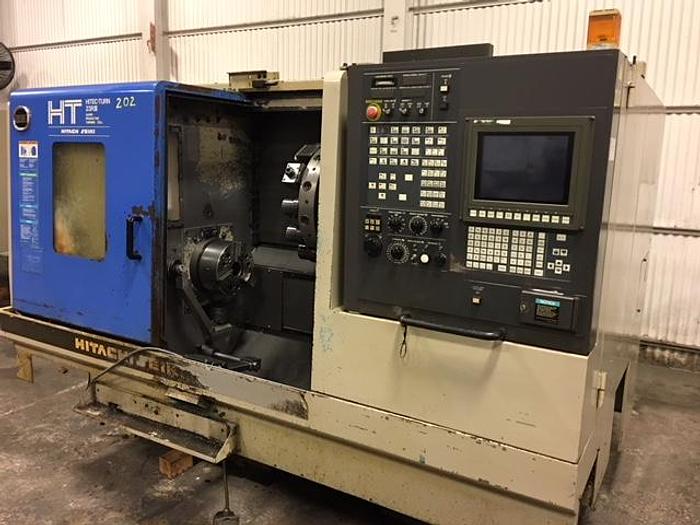

1999 Hitachi Seiki HT-23R III (CNC Lathe With Live Tooling)

$9,000 (USD)

Dallas, TX


1999 Hitachi Seiki Model HT-23RIII Super Cell CNC Lathe - Seicos Control Specifications: Swing Over Bed 17.7" Maximum Turning Diameter 13.38" Maximum Turning Length 23.6" Spindle Bore 3” Bar Capacity 2.6" X Axis Travel 9" Z Axis Travel 24.8" Spindle Speed Range 30 ~ 4,000 rpm Spindle Nose A2-8 Turret Tool Positions 12 Stations (KV Type) Live Milling Spindle Speed 3,000 rpm Live Milling Power 3 / 5 hp. Rapid Traverse (X&Z) 1181 ipm Tailstock Taper / Stroke MT #5 / 20.4" Spindle Motor 20 hp. Floor Space Requirements 12’ x 7’ x 7’ Machine Weight 10,560 lbs. Equipped With: 10” 3 Jaw Hyd Chuck 2) Live Holders Tool Setter Chip Conveyor Manuals All equipment is sold “as is” with no warranty written or implied. All specifications, accessories, standard or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection for verification.


ManufacturerHitachi Seiki
ModelHT-23R III (CNC Lathe With Live Tooling)
