Sold

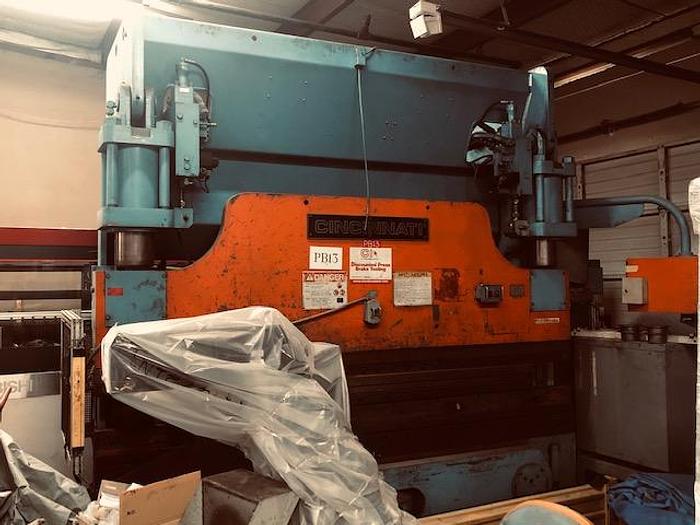

Cincinnati 175 Ton - 8' Hydraulic Brake Press

$45,000 (USD)

Fort Worth, TX

Description

Specifications:

Capacity: 175 Tons
Overall Length of Bed & Ram: 8’
Distance Between Housings: 6’ 6 1/2”
Stroke: 10”
Open Height: 17”
Closed Height: 7”
Throat Clearance: 12”
Approach: 230 Inch/Minute
Form: 1 - 45 Inch/Minute
Return: 1 - 250 Inch/Minute
Width at Top of Bed: 5 1/2”
Main Motor Horsepower: 25 hp. 460V/3Ph/60Hz
Machine Weight 27,500 lbs. (Approx)

Equipped With:

Cincinnati Autoform Siemens Control
24” Back Gauge ( X1, R1)
Power Clamp Upper Toolbar
Electric Foot Switch
Palm Button Station
Precision Ram Leveling
Off Load Center Compensation
Light Curtain

Specifications

ManufacturerCincinnati Hydraulic Brake Press
Model175 Ton - 8'
ConditionUsed
