Sold

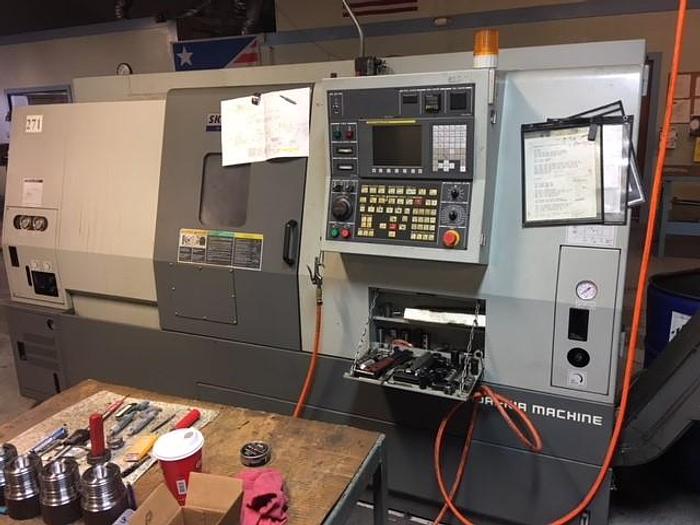

2007 Hyundai Kia SKT-15LM CNC Lathe

$30,000 (USD)

Fort Worth, TX

Description

2007 Hyundai Kia SKT-15LM CNC Lathe Fanuc 0iT-B Control Specifications: Max Swing Over Bed / Carriage 21.7" / 13.8" Max Turning Diameter 10" Max Machining Length 20.87" Spindle Speed 45 - 6000 rpm Spindle Bore 2.2" Max Diameter Bar Capacity 1.73" Spindle Nose A2-5 Spindle Motor 15 / 10 hp. Tools 12 (All Live) Rapid Traverse Rates 1417 ipm Milling Motor 5 HP Milling Speed 4,000 rpm X-Axis Travel 8.3" Z-Axis Travel 21.65" C-Axis Index .001 Degrees Machine Dimensions (L x W x H) 114" x 65" x 70" Machine Weight 9,500 lbs. Equipped With: Hydraulic Collet Chuck Tool Presetter

Specifications

ManufacturerHyundai Kia
ModelSKT-15LM CNC Lathe
Year2007
ConditionUsed
