2003 Kingston Model HD-2290 Engine Lathe

$11,500 (USD)

Fort Worth, TX

orCall 817-714-9839

Description

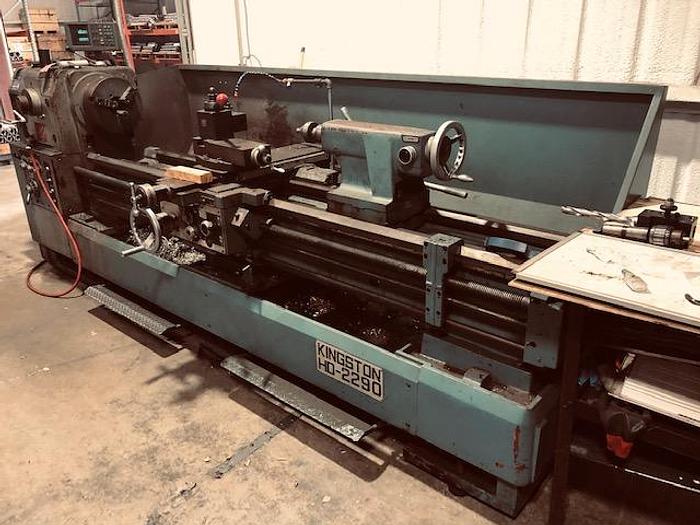

2003 Kingston Model HD-2290 Engine Lathe

Specifications

Swing Over Bed / Gap / Gap Width 22" / 31-5/8” / 10-5/8”
Swing Over Cross Slide 13"
Bed Width 15-3/4"
Centers Distance 90"
Spindle Bore 4-1/16"
Spindle Nose D1-8
Spindle Speeds 13 – 1,200 rpm
Longitudinal Feeds Range 0.0012 - .039 ipr
Cross Feeds Range 0.0004 - .013 ipr
Metric Threads 0.2 - 14 mm
Inch Threads 2 - 72 tpi
Cross Slide Travel 15-3/4"
Compound Slide Travel 9-17/32"
Tailstock Quill Taper / Dia. / Travel #5 MT / 2-15/16” / 7”
Main Motor Drive 10 hp.
Machine Weight 6,200 lbs.
Approx Floor Dimensions 146"L x 50"W x 63"H

Equipped With

Hardened and Ground Bedways
Taper Turning Attachment
Dorian Tool post
12" 3-Jaw Chuck
Full Length Chip Guard
Coolant

Specifications

ManufacturerKingston
ModelModel HD-2290 Engine Lathe
Year2003
ConditionUsed
