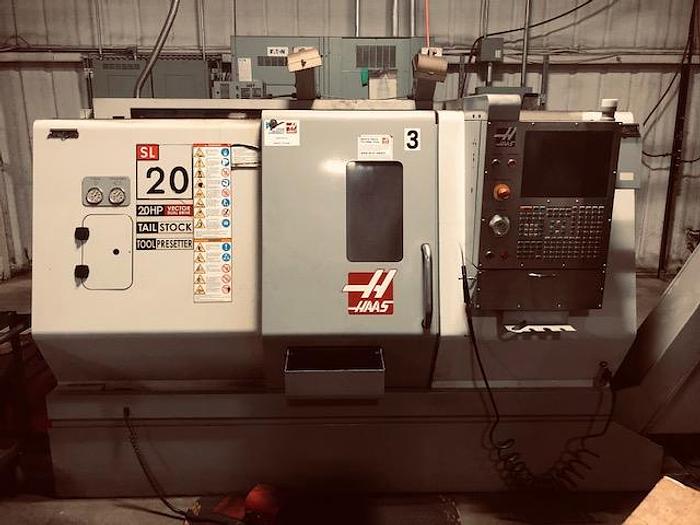

2007 Haas SL-20 CNC Lathe

Sold

2007 Haas SL-20 CNC Lathe

$27,500 (USD)

Fort Worth, TX

Description

2007 Haas SL-20 CNC Lathe Specifications: Swing Over Bed 23.0" Swing Over Cross Slide 9.5" X-Axis Travel 8.45" Z-Axis Travel 20" Tailstock Taper / Stroke M.T. #4 / 20" Maximum Machining Diameter 10.3" Distance Between Centers 24" Spindle Speed 10 - 4,000 rpm Main Motor 20 hp. Spindle Nose A2-6 Spindle Bore 3” Bar Capacity 2.5” Turret Positions 10 Stations Floor Dimensions (approx.) 127" x 75" x 74" Electrical Requirements 230V/3Ph/60Hz Machine Weight 9,000 lbs. Equipped With: Chip Conveyor 8” 3 jaw Hydraulic Chuck Tool Presetter

Specifications

ManufacturerHaas
ModelSL-20 CNC Lathe
Year2007
ConditionUsed
