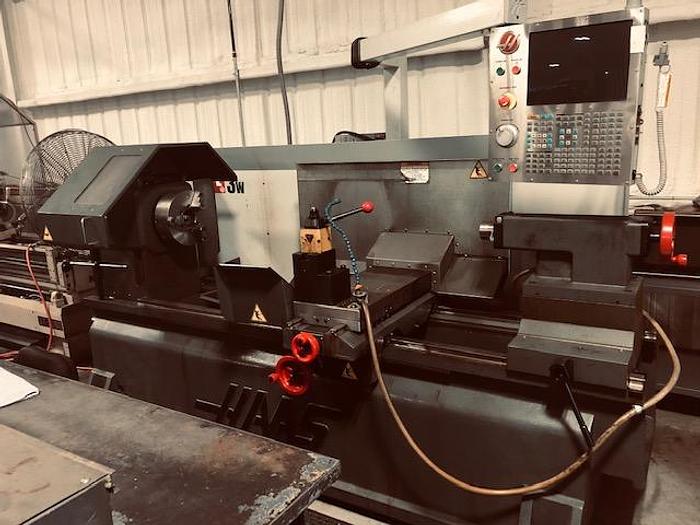

2010 Haas TL-3W Toolroom CNC Lathe

$35,000 (USD)

Fort Worth, TX

orCall 817-714-9839

Description

Specifications:

Maximum Swing Over Bed 30"
Distance Between Centers 60"
Swing Over Cross Slide 18.5"
Maximum Cutting Diameter 30"
Max Cutting Length 60"
X-Axis Travel 16"
Z-Axis Travel 60"
Rapid Traverse (X&Z) 75 / 150 ipm
Spindle Nose A2-8
Spindle Bore 3.5"
Spindle Speed 1,800 rpm
Spindle Motor 18 hp.
Electrical Requirements 230V/3Ph/60Hz
Machine Dimensions 10'L x 6'W x 7'H
Machine Weight 5,000 lbs.

Equipped With

12" 3 Jaw Chuck
Tailstock
Dorian Tool Post

Specifications

ManufacturerHaas
ModelTL-3W Toolroom CNC Lathe
Year2010
ConditionUsed
