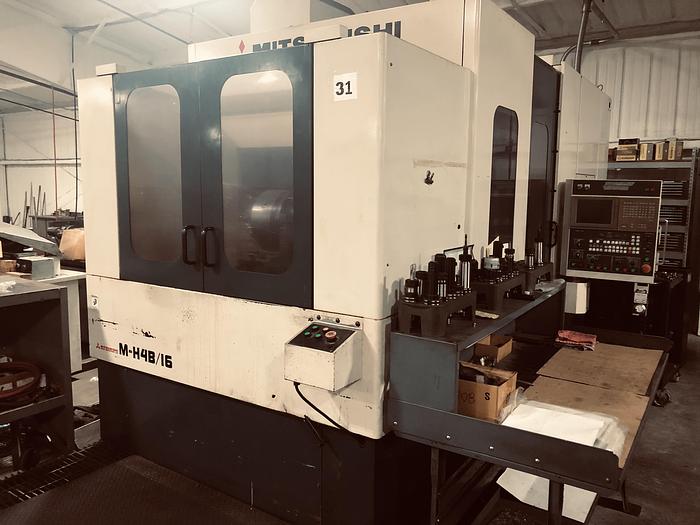

1996 Mitsubishi MH-4B/16 Horizontal Machining Center

Specifications:

Pallet Size (Cap.) 15.75" x 15.75” / (880 lbs.)
Pallet Indexing (B-Axis) 0.001°
Spindle Nose to Table Center 5.9" - 31.5"
Spindle Center to Tabletop 2" - 24"
X-Axis Travel 25.6"
Y-Axis Travel 25.6"
Z-Axis Travel 25.6"
Spindle Taper CT - 40
Spindle Speed 12,000 rpm
Spindle Motor 30 hp.
Tool Changer Capacity 40 Stations
Rapid Traverse Rates 1,575 ipm
Tool Change Time (T-T / C-C) 1.3 / 3.8 Secs.
Maximum Tool Diameter / Weight / Length 5.9" / 11.8” / 18 lbs.
Electrical Requirements 230V/3Ph/60Hz
Machine Dimensions 17’L x 11’W x 10’H
Machine Weight 23,150 lbs.

Equipped With:

Pallet Shuttle
RS-232C
Manuals
