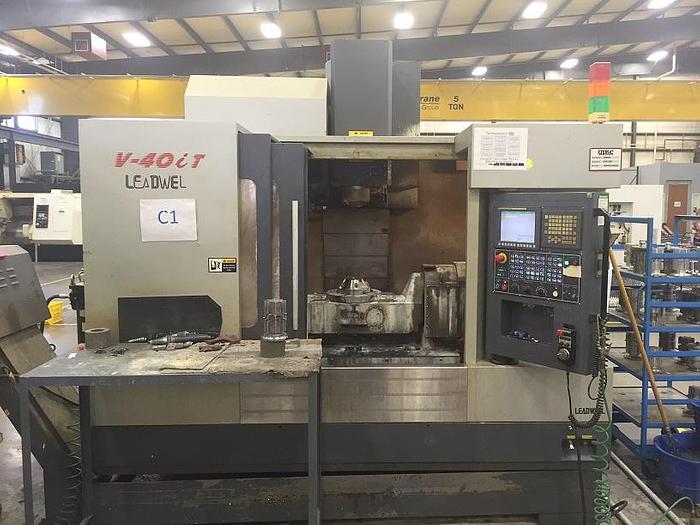

2011 Leadwell Model V-40iT (5 Axis) Trunnion Table

$59,500 (USD)

Fort Worth, TX

orCall 817-714-9839

Description

2011 Leadwell Model V-40iT (5 Axis) Vertical Machining Center
Fanuc 0iM-D Control

Specifications:

Table Size 47.28" x 19.7" (1,100 lbs. Cap)
Spindle Nose to Table Top 6" - 26.4"
Spindle Center to Column 20.2"
X-Axis Travel 40"
Y-Axis Travel 20"
Z-Axis Travel 20"
Spindle Taper CT-40
Spindle Speed 20 - 6,000 rpm
Spindle Motor 15 hp.
Tool Magazine Capacity 24 Position
Max. Tool Diameter/Length/Weight 4.5" / 9.8" / 15 lbs.
Rapid Traverse Rates (X, Y / Z) 787 / 590 ipm
Electrical Requirements 240V/3Ph/60Hz (25 kva)
Machine Dimensions 9’L x 8’W x 8’6”H
Machine Weight 13,500 lbs.

Equipped With:

5 Axis Tilting Rotary Table
Rigid Tapping
RS 232 Port Interface

Specifications

ManufacturerLeadwell
ModelModel V-40iT (5 Axis) Trunnion Table
Year2011
ConditionUsed
