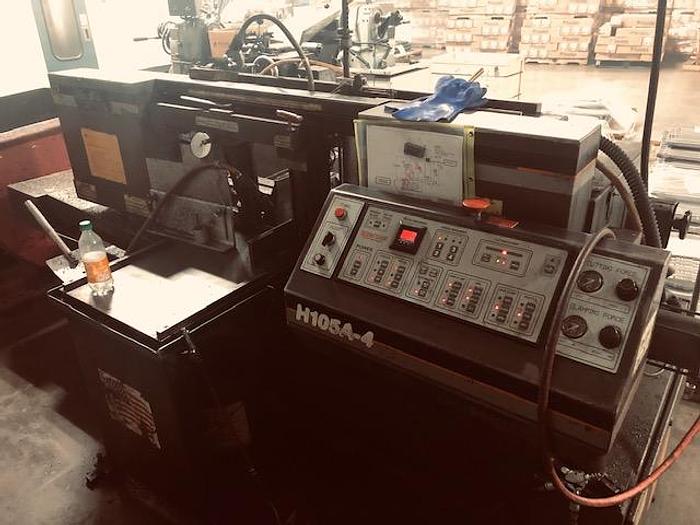

2008 HEM H-105A-4 Automatic Horizontal Band Saw

SPECIFICATIONS

Rectangular & flats 16" x 18"
Capacity Round 14"
Blade Size 15’8” L x 1.25”
Work Height 26"
Blade Speeds 105-275 FPM
Motor Horse Power 5 HP (1800 rpm)
Electrical Requirements 230/460/3/60
approximate Overall Dimensions Approx. 86" L-R x 26" F-B x 53" H
Approximate Overall Weight 4000 lbs.

Equipped With:

Hydraulic Feed Control & Head
Adjustable Vise Pressure
24” Indexable Infeed Conveyor
Release Valve
5-1/2" High Vise With Hand Lever For Clamping
Re-circulating Coolant Pump & Chip Pan
Saw Blade Adjustment Guide
Push Buttons For Start - Stop
Emergency Stop Button
Blade Brush
Chip Auger
Broken Blade Indicator
