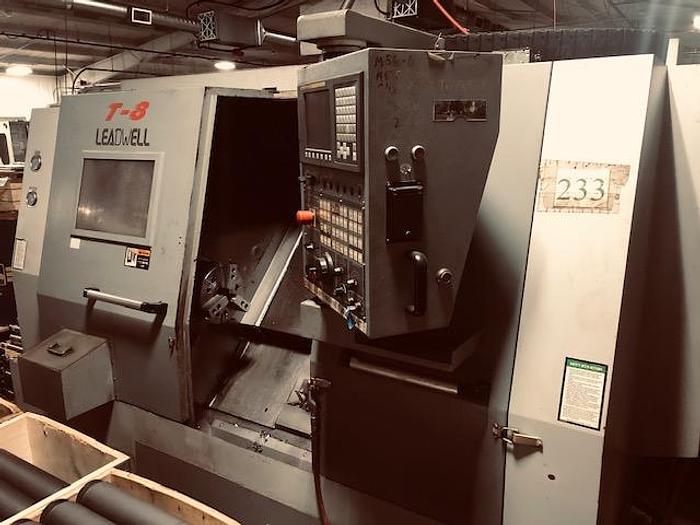

2006 Leadwell T-8 CNC Lathe

$22,500 (USD)

Fort Worth, TX

orCall 817-714-9839

Description

2006 LEADWELL MODEL T-8 CNC LATHE FANUC 0iT-D Control Specifications Maximum Swing 26.3” X Axis Travel 10” Z Axis Travel 25.19” Distance between Centers 24” Spindle Motor 25 hp. Spindle Speed Range 35 – 3,500 rpm Spindle Nose A2-8 Spindle Bore 3.54” Bar Capacity 3” Turret Tool Positions 12 Rapid Traverse (X / Z) 787 / 945 ipm Electrical Requirements 240V/3Ph/60Hz Floor Space Requirements 12’ x 6’ x 6’5” Machine Weight 11,000 lbs. Equipped With: 10” 3 Jaw Hydraulic Chuck Chip Conveyor Manuals All equipment is sold “as is” with no warranty written or implied. All specifications, accessories, standard or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection for verification.

Specifications

ManufacturerLeadwell
ModelT-8 CNC Lathe
Year2006
ConditionUsed
