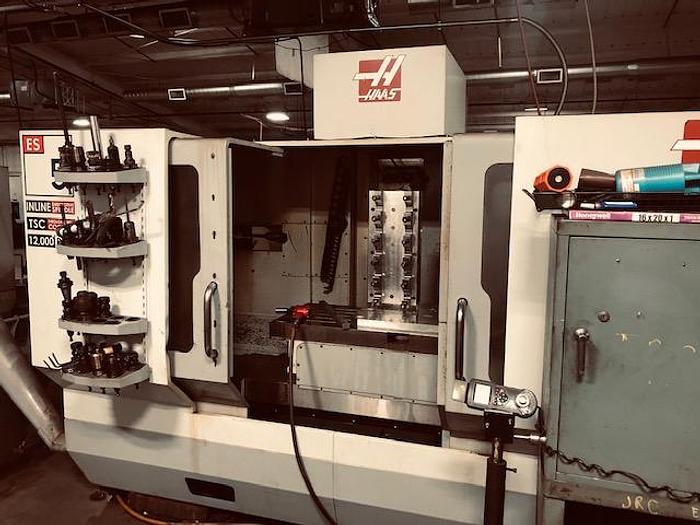

2010 Haas ES-5 Horizontal Machining Center

$49,500 (USD)

Fort Worth, TX

orCall 817-714-9839

Description

Specifications:

X Axis Travel 40”
Y Axis Travel 18”
Z Axis Travel: 22”
Rapid Rate X Axis: 710 ipm
Rapid Rate Y Axis: 1000 ipm
Rapid Rate Z Axis: 1000 ipm
Pallet Size: 40” x 15” (625 lbs. max cap)
Spindle Speed: 12,000 rpm
Spindle Motor: 30 hp.
Spindle Taper: CT - 40
Tool Changer Positions 40 Stations
Electrical Requirements 230V/3Ph/60Hz
Machine Dimensions: 13’ x 12’6” x 8’
Machine Weight 14,000 lbs.

Equipped With:

360,000 Full 4th
Remote Jog Handle
Thru the spindle coolant

Specifications

ManufacturerHaas
ModelES-5 Horizontal Machining Center
Year2010
ConditionUsed
