2002 MAZAK Slant Turn 450 CNC Lathe

Houston, TX

Description

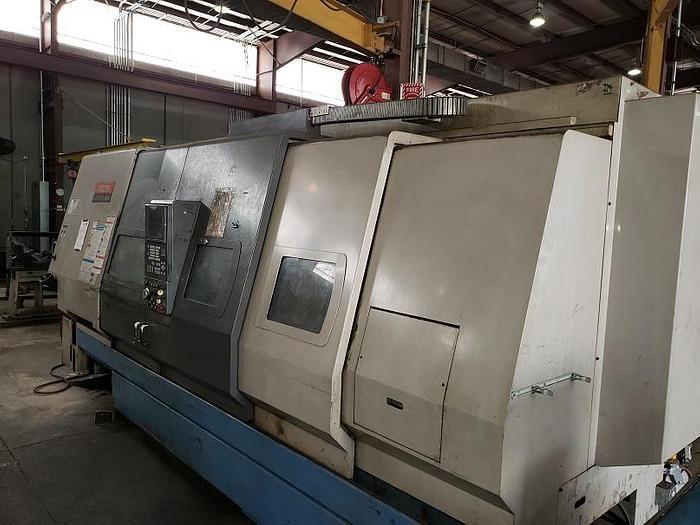

2002 Mazak Slant Turn 450 CNC Lathe
Mazatrol Fusion 640T

Specifications:

Maximum Swing 28.125"
Swing Over Carriage 20.4"
Maximum Cutting Diameter 24.4"
Maximum Machining Length 80"
X-Axis Travel 14.375"
Z-Axis Travel 83.25"
Spindle Nose / Spindle Bore A2-15 / 7.1"
Spindle Speeds 1,500 rpm
Spindle Motor 30 Min. / Cont. (3-Ranges) 40 / 30 hp (AC)
Maximum Spindle Torque 1157 ft./lbs.
Turret Type 12 Position
Rapid Traverse Rates (X / Z) 787 ipm / 945 ipm
Tailstock Body Travel / Quill 77.8" / 5.12"
Tailstock Quill Diameter / Center 5.12"/ MT #5
Machine Dimensions 215" x 81" x 100"
Machine Weight 25,080 lbs.

Equipped With:

21” 3 Jaw Nobel Chuck
Programmable Tailstock
Chip Conveyor
RS 232 Port Interface
All Available Manuals

Specifications

ManufacturerMAZAK
ModelSlant Turn 450 CNC Lathe
Year2002
ConditionUsed
