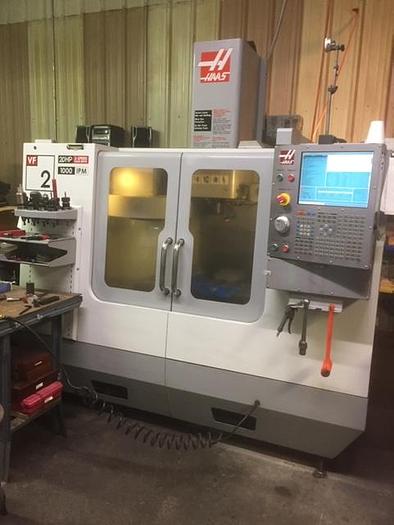

2008 Haas VF-2 Vertical Machining Center (2-Speed Gear Range)

Specifications

Table Size 36" x 14"
Table Load Capacity 3000 lbs.
X-Axis Travel 30"
Y-Axis Travel 16"
Z-Axis Travel 20"
Spindle Nose to Table Top 4" to 24"
Max Tool Dia 3.5"
Max Tool Weight 12 lbs
Tool Magazine Capacity 20 Position ATC
Spindle Taper CAT 40
Spindle Motor 20 HP
Spindle Speed 0 - 7,500 RPM gearbox
Rapid Traverse 1,000 IPM
Air Required 4 SCFM, 100 PSI
Machine Dimensions LxWxH 88"x92.5"x104"
Machine Weight 8,000 lbs.

Equipped with

Chip Auger
Programmable Coolant Nozzle
USB Port
Rigid Tapping
Coolant Tank & Pump
All Available Manuals
