2000 Haas SL-30 "Big Bore"

$35,000 (USD)

Hubbard, TX

orCall 817-714-9839

Description

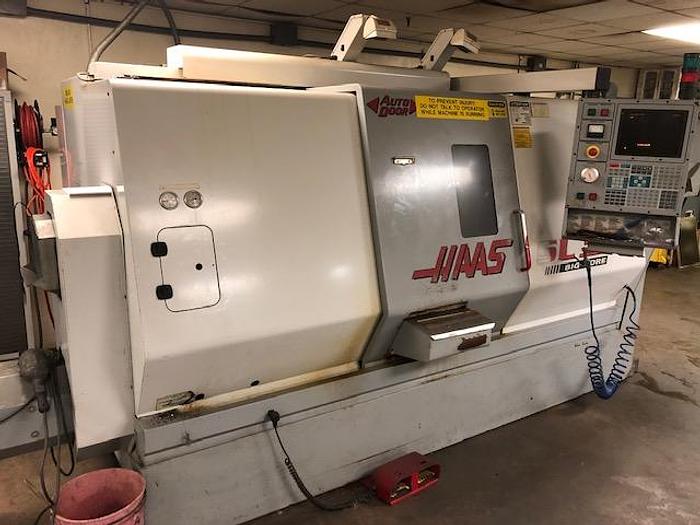

2000 HAAS MODEL SL-30 “Big Bore” CNC LATHE

Specifications:

Swing over Bed 30″
Swing over Cross Slide 20″
Max Cutting Diameter 17″
Max Cutting Length 39″
X Axis Travel 12.5″
Z Axis Travel 26″
Rapid Rates (X&Z) 945 ipm
Spindle Bore 4.5″
Bar Capacity 4.0″
Spindle Speed 20 - 3,400 rpm
Spindle Motor 30 hp.
Turret Capacity 12 Stations
Tailstock Taper MT #4
Machine Dimensions 162″ x 77″ x 74″
Machine Weight 16,000 lbs.

Equipped With:

15″ 3 Jaw Hydraulic Chuck
Tool Presetter
2 Speed Gearbox

Specifications

ManufacturerHaas
ModelSL-30 "Big Bore"
Year2000
ConditionUsed
