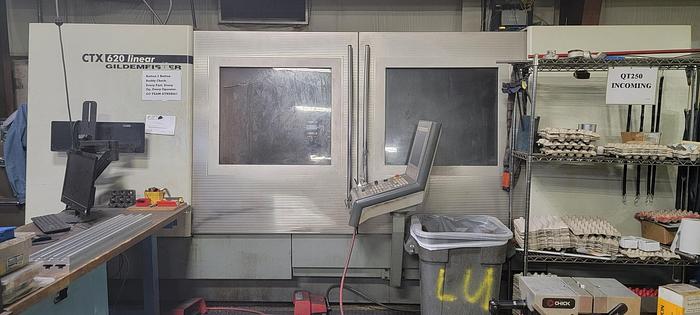

DMG Model CTX-620 CNC Lathe – Siemens 820 Control
DMG Model CTX-620 CNC Lathe – Siemens 820 Control
$55,000 (USD)
Hubbard, TX
orCall 817-714-9839
Description
2003 DMG Model CTX-620 CNC Lathe
Siemens 820 CNC Control
Equipped With:
15” 3 Jaw Hydraulic Chuck
Chip Conveyor
Misc Live Holders
Manuals
*****NOTE – Live Tooling Feature Does Not Work *****
Specifications
| Condition | Used |
| Maximum swing over bed | 32” |
| Maximum turning diameter | 24” |
| Maximum x axis travel | 15” |
| Maximum distance between centers | 40” |
| Main spindle motor | 50 hp. |
| Spindle speed range | 20 – 2,500 rpm |
| Spindle bore | 5.35” |
| Bar capacity | 4.50” |
| Rotary tool speed (live tooling) | 20 – 4,000 rpm |
| Turret tool positions (driven) | 12 Stations (12) |
| Electrical requirements | 230V/3Ph/60Hz |
| Floor dimensions | 17.5’ x 8’9” x 7’6” |
| Machine weight | 19,800 lbs. |
