1996 MAZAK Dual Turn 20 (Twin Spindle CNC Lathe)

$29,500 (USD)

Texas

orCall 817-714-9839

Description

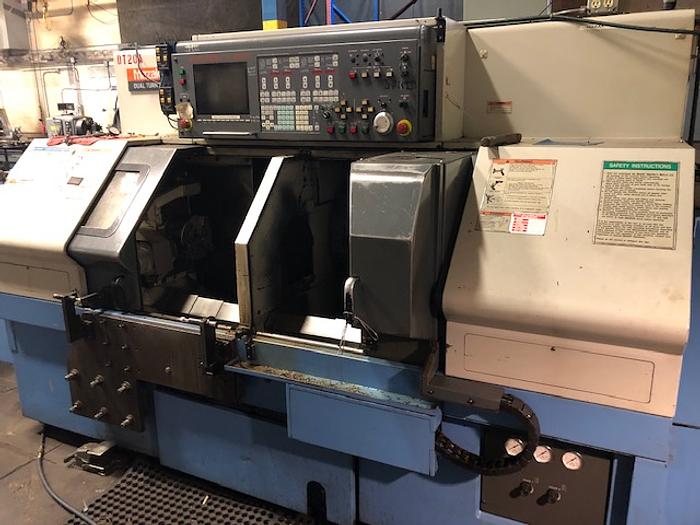

1996 Mazak Dual Turn 20 Twin Spindle - Twin Turret CNC Lathe

Specifications

Maximum Swing over Bed 12.6"
Maximum Turning Diameter 12.6"
Maximum Diameter of Transferred Workpiece 10"
Maximum Part Length 49.21"
Maximum Bar Capacity 2"
X Axis Travel 9.05"
Z Axis Travel 19.68"
Spindle Bore 2.4"
Spindle Speed Range 10 – 4,750 rpm
Spindle Motor 20 hp.
Spindle Nose A2-6
Turret Tool Capacity (2-Turrets) 12 x 2
Rapid Traverse (X/Z) 1,200 / 1,300 ipm
Machine Dimensions 154" x 107" x 80"
Electrical Requirements 240V/3Ph/60Hz
Machine Weight 13,700 lbs.

Equipped With:

2) 8” 3 Jaw Hydraulic Chucks
Chip Conveyor
Programmable Workpiece Transfer Between Spindles

Specifications

ManufacturerMAZAK
ModelDual Turn 20 (Twin Spindle CNC Lathe)
Year1996
ConditionUsed
