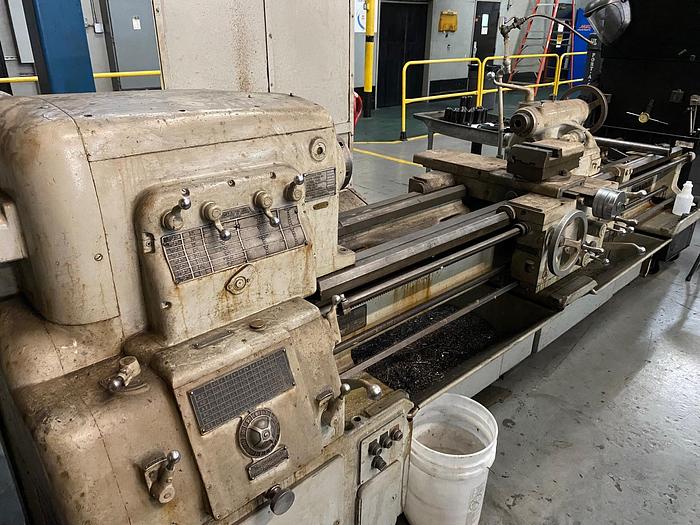

1952 Monarch Engine Lathe (22.5″ x 72″)

1952 Monarch Engine Lathe (22.5″ x 72″)

$7,500 (USD)

Hubbard, TX

orCall 817-714-9839

Description

1952 Monarch Engine Lathe 22.5″ x 72″ Tailstock Taper / Quill Dia./ Quill Travel MT#4 / 3.13″/ 6″

Specifications

Year1952
ConditionUsed
Swing over bedways22.50″
Swing over cross slide14″
Compound slide travel3.75″
Cross slide travel11.9″
Distance between centers72″
Spindle bore1.56″
Spindle speed range28 – 1,200 rpm (16) Speeds
Spindle motor20 hp.
Longitudinal feeds.0014 – .0841 ipr (66 Changes)
Threading range2 – 120 tpi
Electrical requirements230V/3Ph/60Hz
Floor dimensions15′ x 5′ x 5’6″
Machine weight10,000 lbs.
