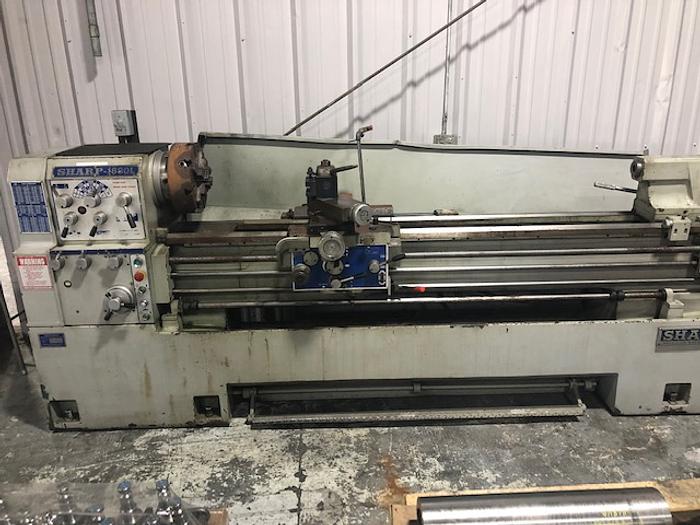

Sharp 1880 Precision Engine Lathe

$6,500 (USD)

Houston, TX

orCall 817-714-9839

Description

Sharp 1880 Engine Lathe

Specifications:

Swing Over Bed 18.5″
Swing Over Cross Slide 11″
Swing Over Gap / Width of gap 27-1/8″ / 11.75”
Distance Between Centers 80″
Spindle Nose D1-8 Camlock
Spindle Bore 3-1/16″
Spindle Speeds 20 - 2,000 rpm
Tailstock Taper / Quill Dia / Quill Travel MT#5 / 2-11/16” / 5-1/2”
Longitudinal Feeds 0.002-0.032″
Cross Feeds 0.001-0.0094″
Inch Threads 4-56 tpi
Metric and Module Threads 0.5-7 mm
Cross Slide Travel 9-7/8″
Compound Rest Travel 5.3″
Bed Width 11-3/4″
Spindle Motor 7-1/2 hp.
Machine Weight 4,500 lbs.
Dimensions (L x W x H) 104.3″ x 31.9″ x 48″
Electrical Requirements 230V/3Ph/60Hz (8kva)
Spindle Motor 7-1/2 Hp

Equipped With:

Taper Attachment
Steady Rest
Coolant System
Full Length Splash Guard
Aloris Tool Post - 8-Holders
12” 4 Jaw Chuck

Specifications

ManufacturerSharp
Model1880 Precision Engine Lathe
ConditionUsed
