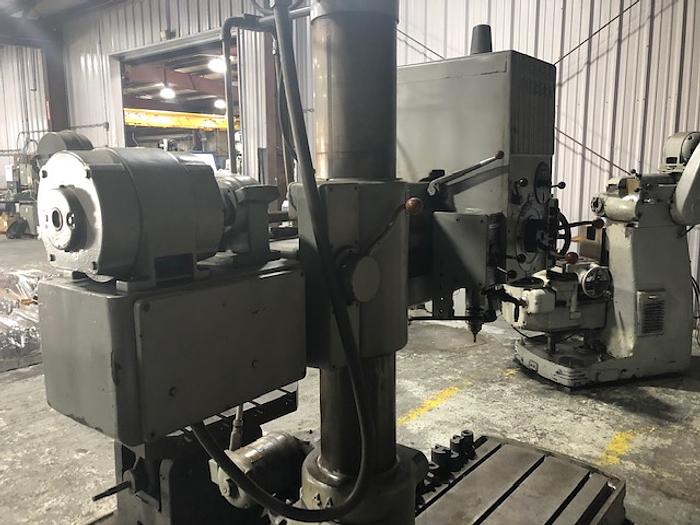

Cincinnati Gilbert 4 ft Radial Arm Drill

Cincinnati Gilbert 4 ft Radial Arm Drill

$4,500 (USD)

Houston, TX

orCall 817-714-9839

Description

Cincinnati Gilbert 4’ x 9” Radial Arm Drill


SPECS


4'X9" Cincinnati Gilbert Radial Arm Drill

Length 4' Head

Traverse On Arm 38-3/4"

Column Diameter 9"

Column To Spindle Center Max. 48"

Column To Spindle Center Min. 9-1/4"

Capacity In Cast Iron 1-3/4"

Capacity In Mild Steel 1-1/2"

Spindle To Base Max. 65"

Spindle To Base Min. 14-1/2"

Spindle Speeds (12) 40 To 1,600 Rpm's Spindle Taper # 4 Morse

Spindle Travel 10"

Spindle Diameter 3"

Spindle Feeds (4) .003 To .015

Main Motor 3 Hp.

Weight 5,700 Lbs

Floor Space 31" X 86"

Height 101"


Equipped With


Automatic Spindle Reverse For Tapping

Manual Clamp To Head Yes

Power Clamp On Arm

Power Elevation


Specifications

ManufacturerCincinnati Gilbert
Model4 ft Radial Arm Drill
ConditionUsed
