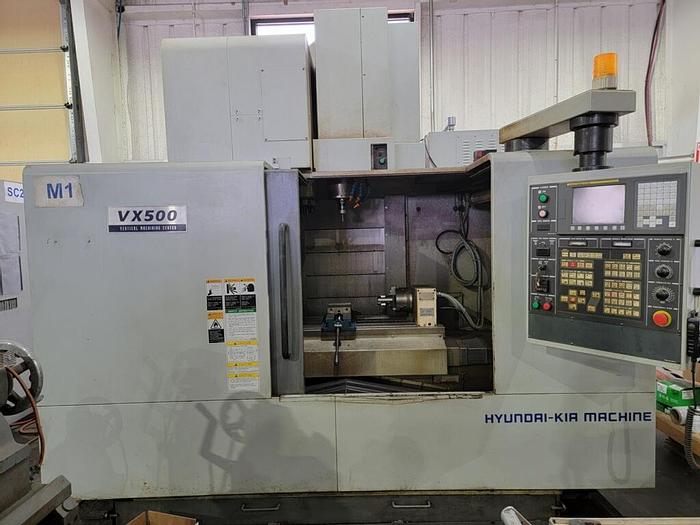

2007 Hyundai Kia Model VX-500 Vertical Machining Center (4th Axis) Fanuc 0i-MC VX-500

Specifications:

Table Size (Max weight capacity)                                         47.2″ x 19.7″ (1,763 lbs.)

Spindle Nose to Table (Min.- Max.)                                      5.9″ – 30.9″

X-Axis Travel                                                                        41.7″

Y-Axis Travel                                                                         20.1″

Z-Axis Travel                                                                         25.0″

Rapid Traverse Rates                                                              1,417 ipm

Maximum Feed Rate                                                              590 ipm

Spindle Taper                                                                         CT-40

Speed Range                                                                           20 – 10,000 rpm

Spindle Power                                                                         15 hp.

Automatic Tool Changer                                                        24 Stations

Maximum Tool Weight / Dia. /Length                                   17.6 lbs. / 3.54" / 11.8"

Tool Changing Time                                                              3 Seconds

Air Requirements                                                                    80 psi, (4 scfm)

Electrical Requirements                                                         230V/3Ph/60Hz (35 kva)

Overall Dimensions                                                                12’L x 8’2”W x 10″H

Machine Weight                                                                     16,500 lbs.

Equipped With:

4th Axis Rotary Table            Spindle Chiller Unit                Manuals
