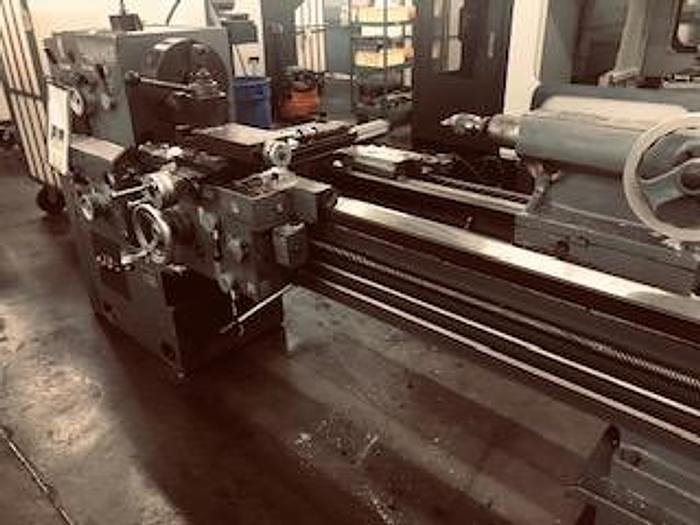

1978 Summit Engine Lathe – Model 19-4 (20″ x 80″) 4″ Bar Capacity 19-4
1978 Summit Engine Lathe – Model 19-4 (20″ x 80″) 4″ Bar Capacity 19-4
$6,500 (USD)
Hubbard, TX
orCall 817-714-9839
Description
Metric threads (24 changes) 0.5mm – 7 mm
Shipping Dimensions (L x W x H) 130″ x 45″ x 62″
Equipped With:
12″ 3 Jaw Chuck
Taper Attachment
Aloris Type Tool Post
Specifications
| Manufacturer | Summit |
| Model | 19-4 |
| Year | 1978 |
| Condition | Used |
| Swing over bed | 20″ |
| Swing over cross slide | 13″ |
| Swing in gap | 27.12” |
| Bed width | 13-4/5″ |
| Distance between centers | 80″ |
| Spindle hole | 4-1/8″ |
| Spindle nose | D1-8 camlock |
| Spindle speeds | (18 speeds) 20 – 1500 rpm |
| Inch threads | (36 changes) 4 – 56 tpi |
| Tailstock taper / dia. / travel | #5 MT / 2.75” / 6” |
| Main motor power | 10 HP |
| Electrical requirements | 220V/440V/3Ph/60Hz |
| Machine weight | 6,000 lbs. |
