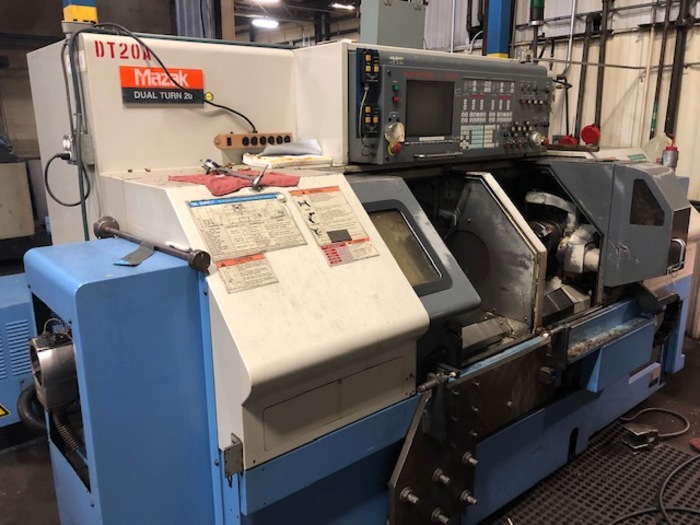

2001 MAZAK Dual Turn 20 (Twin Spindle CNC Lathe)

$29,500 (USD)

Texas

orCall 817-714-9839

Description

Specifications:

Standard Cutting Diameter……. 10.00"
Maximum Swing Diameter……….12.6"
Max. Cutting Dia.for Bar Work…… 2"
Max. Cutting Length for Cutting Work…. 5.91"
Distance Between Spindle Faces:
Max. (BothHeads @ Home Position)….. 49.21"
Spindle Nose………………… A2-6
Spindle Bore………………… 2.4"
Spindle Speed………….35-5,000 RPM
Number of Speed Ranges……………. 1
Spindle Horsepower (Cont/30 Mins)……. 15/20 A.C.
Type of Turrets…………………. 12 Position/Drum
Total No. of Tools………….24 (12 X 2)
Travel X-Axis:
Turret No. 1……………. 9.06"
Turret No. 2…………… 9.06"
Travel Z-Axis:
Head No. 1……………… 19.69"
Head No. 2……………. 19.69"
Z-Axis………………. 197/ipm
Machine Floor Space:
Machine Height…………….. 80.3"
Total Weight 14,520 lbs.

Equipped With:

Mazatrol T Plus
Chip Conveyor
Tool Eyes
Auto Chuck Open/Close
Conversational Programming
Programmable Work Piece Transfer Between Spindles
Exit Conveyor

All equipment is sold “as is” with no warranty written or implied. All specifications, accessories, standard
or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection for verification.

Specifications

ManufacturerMAZAK
ModelDual Turn 20 (Twin Spindle CNC Lathe)
Year2001
ConditionUsed
