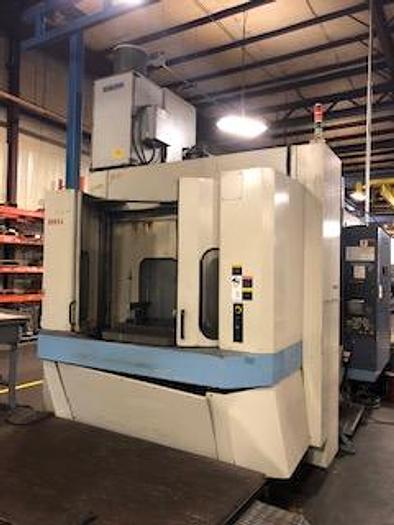

2001 OKK Horizontal Machining Center HM-80-S

$55,000 (USD)

Texas

orCall 817-714-9839

Description

Specifications

Pallet Size 31.5" x 31.5" (2,424 lbs. max)
Table indexing .001 deg. (360,000)
Distance - table top to spindle center 1.2" - 34.6"
Distance - table center to spindle nose 7.9" - 40.2"
X-Axis travel 39.37"
Y-Axis travel 33.46"
Z-Axis travel 32.28"
Spindle speeds 10,000 rpm
Spindle taper 50
Automatic Tool Changer
X & Z axis digital servo motors 6.1/6.7 hp.
Y axis digital servo motor 6.1/7.8 hp.
X, Y & Z axes maximum thrust 3,945 lbs.
Spindle drive motor (cont./30 min.) 40/33.5 hp.

Equipped With:

Chip Blaster High Pressure
Coolant Through Spindle
Chip Conveyor

Very Good Condition - Under Power in Plant

Specifications

ManufacturerOKK Horizontal Machining Center
ModelHM-80-S
Year2001
ConditionUsed
