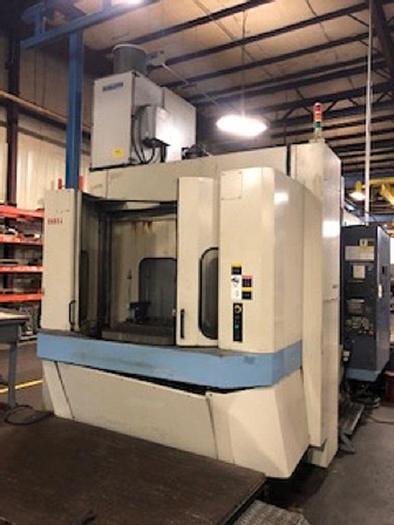

2001 OKK Horizontal Machining Center HM-80-S – Fanuc 16M-B Control

2001 OKK Horizontal Machining Center HM-80-S – Fanuc 16M-B Control

$35,000 (USD)

Hubbard, TX

orCall 817-714-9839

Description

Equipped With: Coolant Through Spindle High Pressure Coolant Chip Conveyor Very Good Condition – Under Power in Plant

Specifications

ManufacturerOKK
Year2001
ConditionUsed
Pallet size31.5″ x 31.5″ (2,424 lbs. max)
Table indexing.001 deg. (360,000)
Distance – table top to spindle center1.2″ – 34.6″
Distance – table center to spindle nose7.9″ – 40.2″
X-axis travel39.37″
Y-axis travel33.46″
Z-axis travel32.28″
Spindle speeds10,000 rpm
Spindle taper50
Automatic tool changer60
X & z axis digital servo motors6.1/6.7 hp.
Y axis digital servo motor6.1/7.8 hp.
X, y & z axes maximum thrust3,945 lbs.
Spindle drive motor (cont./30 min.)40/33.5 hp.
