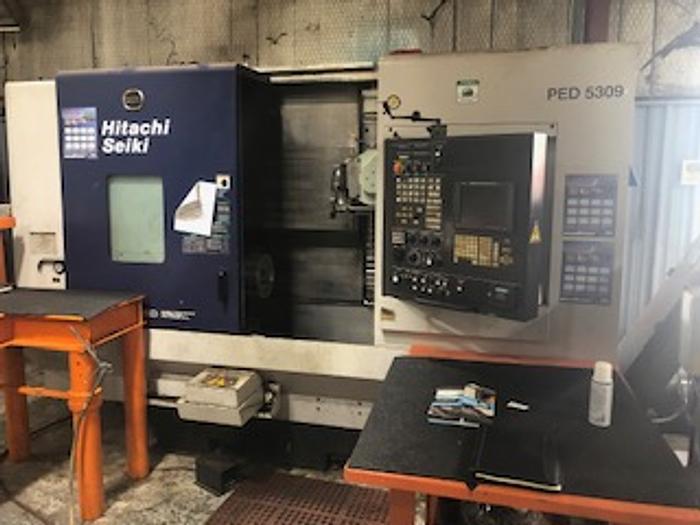

2002 Hitachi Seiki CH-250 Super Cell - 5 Axis Turning/Milling Center

2002 Hitachi Seiki CH-250 Super Cell - 5 Axis Turning/Milling Center

$50,000 (USD)

Houston, TX

orCall 817-714-9839

Description

2002 Hitachi Seiki CH-250 Super HiCell Multicenter- Twin Spindle - Y Axis - Live Tools - ATC


Specifications:


4-5 axis simultaneous control milling --Full ZB axis 10/7.5 hp Sub spindle

60 Tool Magazine -- Full B axis 7.5/5.5 hp mill/drill spindle head 80-8000 rpm --

Full C axis 25/20 hp direct drive oil cooled main spindle -- 6" Y axis,

X axis, Y axis, Z axis, B axis (spindle head), C axis (main spindle), ZB axis (sub spindle),

CB axis (sub spindle pos.) Seicos Control with 10.4" color TFT monitor (graphic display)

10" main chuck , 8" sub spindle chuck

30-4000 rpm main spindle (A2-8 nose) , 50-5000 rpm sub spindle (A2-5 nose)

1.2 second tool change --NT40 short taper on rotary and stationary spindle head

1181 ipm rapid traverse --.001 deg. increment on B & C axis

Direct tapping at any angle to .001 deg.

2.56" thru main spindle 3.07" max. spindle bore


Specifications

ManufacturerHitachi Seiki
ModelCH-250 Super Cell - 5 Axis Turning/Milling Center
Year2002
ConditionUsed
