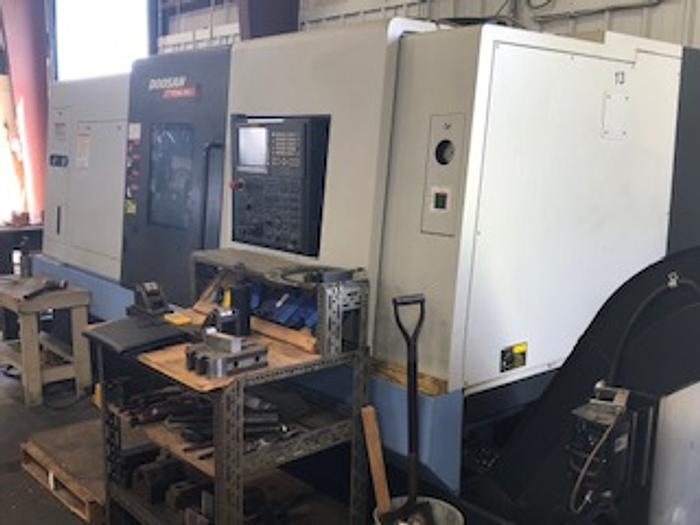

2014 Doosan Puma 480 CNC Lathe - With Fanuc 32iT-B Control (Excellent)

Contact us for price

Texas

orCall 817-714-9839

Description

2014 Doosan Puma 480 CNC Lathe With Fanuc 32iT-B Control (Excellent)

Specifications:

Maximum Swing Over Bed 35.4″
Maximum Swing Over Carriage 28.3″
Maximum Turning Diameter 25.6″
Maximum Center Distance 44.7″
X Axis Travel 14.3″
Z Axis Travel 43.5″
Spindle Nose A1-15
Spindle Bore 7.12″
Bar Capacity 6.55″
Spindle Speed (2 Gear Ranges) 15 – 1,500 rpm (2,975 ft-lbs.)
Spindle Motor 60 hp.
Turret 12 Positions
Rapid Traverse Rates (X / Z) 630 / 790 ipm
Tailstock Quill / Travel / Diameter / Taper 4.7″ / 4.7” / MT # 5
Machine Dimensions-Approximate 216″ x 81″ x 94″
Voltage Requirements 205-235V/3Ph/60Hz
Machine Weight 22,250 lbs.

Equipped With:

24" 3 Jaw Hydraulic Chuck
Chip Conveyor (Variable Speed)
Tool Presetter
Turret Tool Holders
CoolMist High Pressure Coolant (300psi)
All Available Manuals

All equipment is sold “as is” with no warranty written or implied. All specifications, accessories, standard
or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection for verification.

Specifications

ManufacturerDoosan
ModelPuma 480 CNC Lathe - With Fanuc 32iT-B Control (Excellent)
Year2014
ConditionUsed
HoursLess than 1000 hours
