2012 Doosan Puma 400C

2012 Doosan Puma 400C

Contact us for price

Texas

orCall 817-714-9839

Description

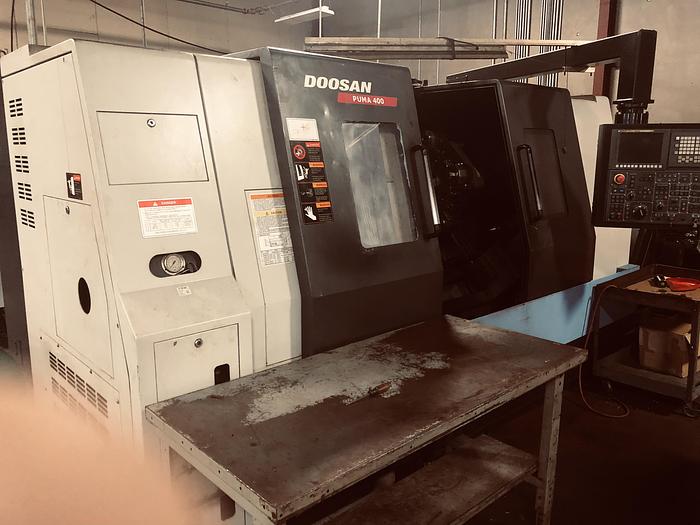

2012 DOOSAN PUMA 400C CNC LATHE

Fanuc 32i-A Control



Specifications



Max. Swing                                                                     30.3"

Swing Over Carriage                                                      23.2"

Max. Turning Diameter                                                   22.4"

Max Shaft Length                                                           41.1"

Bar Capacity                                                                     6.5”

X-Axis Travel                                                                 14.3"

Z-Axis Travel                                                                  43.5

Spindle Nose                                                                    A2-11"

Spindle Speed                                                                   20 – 2,000 rpm (2-Speed GB)

Turret Configuration                                                       12 Stations

Rapid Traverse                                                                 550/710 ipm

Tail Stock Dia. / Quill Stroke / TS Body Travel              4.7" / 4.7” / 39.4”

Main Motor                                                                       40/50 hp. (cont /50% duty)

Machine Weight                                                               19,800 lbs.



Equipped With



21" 3 Jaw Hydr     Chip Conveyor     Tool Presetter

Specifications

ManufacturerDoosan
ModelPuma 400C
Year2012
ConditionUsed
