2014 Doosan Daewoo PUMA - 400C

2014 Doosan Daewoo PUMA - 400C

Contact us for price

Hubbard, TX

orCall 817-714-9839

Description

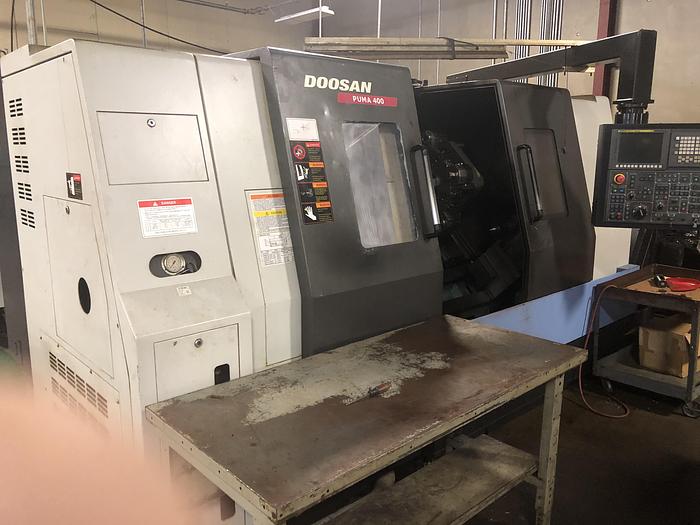

2014 Doosan Puma 400C CNC Lathe

Fanuc Series 32i - Model A



Specifications:



Swing Over Bed                                                                                  30.3"

Maximum Turning Diameter                                                               21.7"

Center Distance                                                                                   44.7"

Spindle Bore                                                                                       7.12”

Bar Capacity                                                                                      6.55"

X Axis Travel                                                                                    14.1"

Z Axis Travel                                                                                     43.5"

Spindle Nose                                                                                     A2-15

Spindle Speed (RPM)                                                                         1,500 rpm

Main Motor                                                                                        50 hp.

Turret Capacity                                                                                   12

Electrical Requirements                                                                       240V/3Ph/60Hz

Floor Dimensions                                                                               170" x 94" x 89"

Machine Weight                                                                                 18,900 lbs.



Equipped With:



21" Hydraulic Chuck    Tool Presetter             Chip Conveyor            300psi High Pressure Coolant

Specifications

ManufacturerDoosan Daewoo
ModelPUMA - 400C
Year2014
ConditionUsed
Swing30.3"
Chuck21"
Bar capacity6.5"
