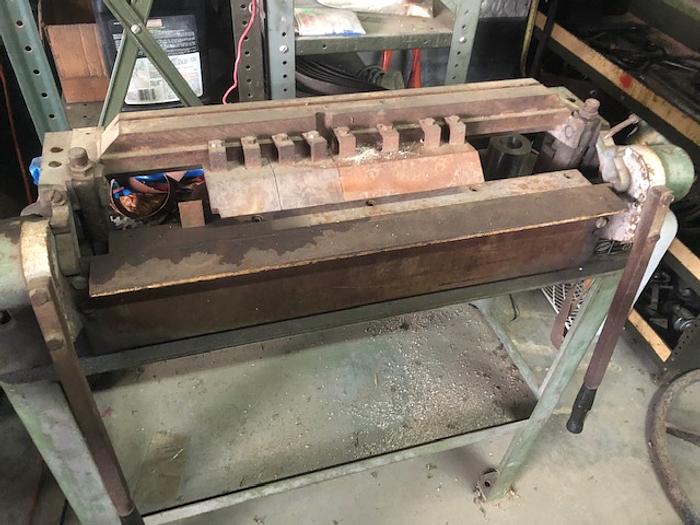

DiAcro Brake Press Model No. 24

Bending Width.......................24"
Bending Capacity....................16 ga. M.S., 20 ga. Stn Stl
Max Depth of Bend...................3"
Clearance Thru Top..................1"
Reverse Bends, Min..................1/4"
Angle of Bend.......................135 Deg.
Dimensions..........................46" x 16" 42" H
Weight, Approx......................450 lbs.

All equipment is sold “as is” with no warranty written or implied. All specifications, accessories, standard
or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection for verification.
