1999 Femco BMC-110 R1

Contact us for price

Houston, TX

orCall 817-714-9839

Description

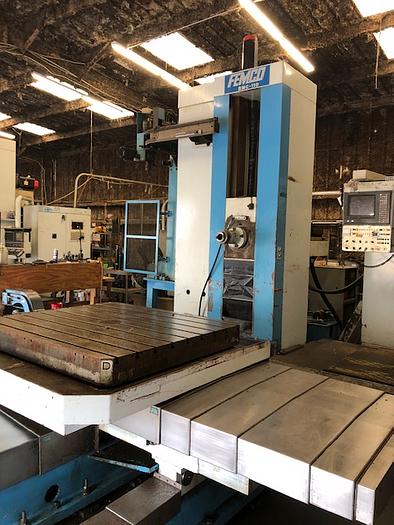

1999 Femco BMC-110 R1 CNC Horizontal Boring Mill - Fanuc 18M

Specifications:

Table Size 44" x 49" (8,819 lbs. cap.)
Table Cross Travel (X) 55"
Headstock Travel (Y) 47.25
Table Longitudinal (Z) 43.30
Quill Stroke (W) 19.69"
Spindle Quill Diameter 4.33"
Tool Shank CT-50
Milling Spindle Diameter 8.86"
Spindle Motor 35 hp.
Low Speed Range 4 - 454 rpm
High Speed Range 455 – 2,500 rpm
Tool Storage Capacity 60 Tools
Servos - X-Axis / Y Axis / Z Axis / W Axis / B Axis 8 hp. / 9 hp. / 8 hp. / 5.4 hp / 5.1 hp.
Rapid Traverse Rate (X,Y,Z/W) 393 ipm / 236 ipm
Machine Dimensions (LxWxH) 220.35" x 223" x 132.68"
Machine Weight 35,500 lbs.
Power Requirements 220V/3Ph/60Hz (100 amps)

Equipped With:

Fanuc 18-M Control
Chip Conveyor
Manuals

All equipment is sold “as is” with no warranty written or implied. All specifications, accessories, standard
or optional, are approximate. It is the Buyer’s responsibility to make a thorough inspection for verification.

Specifications

ManufacturerFemco
ModelBMC-110 R1
Year1999
ConditionUsed
