1999 Femco BMC-110R1

1999 Femco BMC-110R1

Contact us for price

Hubbard, TX

orCall 817-714-9839

Description

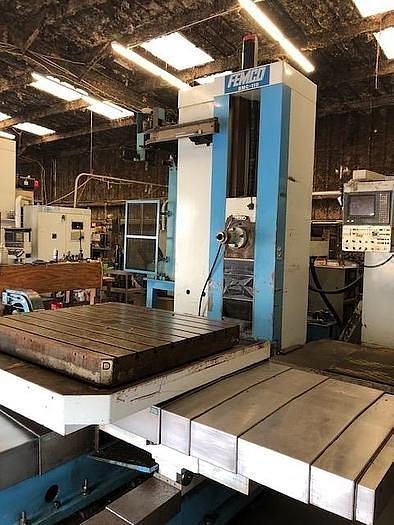

4.3" Femco #BMC-110R1, CNC horizontal boring mill, 44" x 49" table, 55" X, 47.25" Y, 43.3" Z, Fanuc 18M, 1999 Table Size 44″ x 49″ (8,819 lbs. cap.) Table Cross Travel (X) 55″ Headstock Travel (Y) 47.25 Table Longitudinal (Z) 43.30 Quill Stroke (W) 19.69″ Spindle Quill Diameter 4.33″ Tool Shank CT-50 Milling Spindle Diameter 8.86″ Spindle Motor 35 hp. Low Speed Range 4 – 454 rpm High Speed Range 455 2,500 rpm Tool Storage Capacity 60 Tools Servos – X-Axis / Y Axis / Z Axis / W Axis / B Axis 8 hp. / 9 hp. / 8 hp. / 5.4 hp / 5.1 hp. Rapid Traverse Rate (X,Y,Z/W) 393 ipm / 236 ipm Machine Dimensions (LxWxH) 220.35″ x 223″ x 132.68″ Machine Weight 35,500 lbs. Power Requirements 220V/3Ph/60Hz (100 amps) Equipped With: Fanuc 18-M Control Chip Conveyor Manuals

Specifications

ManufacturerFemco
ModelBMC-110R1
Year1999
ConditionUsed
Spdl. dia.4.30"
