Doosan Daewoo PUMA - 400C

Doosan Daewoo PUMA - 400C

Contact us for price

Hubbard, TX

orCall 817-714-9839

Description

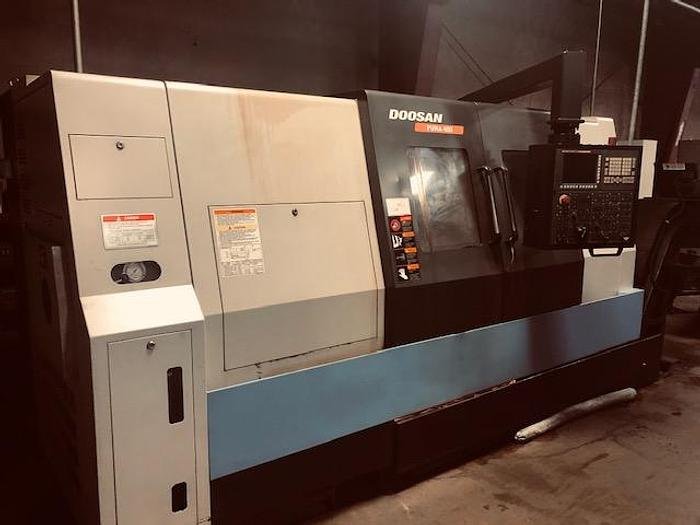

Doosan Daewoo Puma #400C, 30.3" swing, 21" chuck, 6.5" bar, 22.4" turn diameter, 12 station turret, Fanuc 32iT-B, 2012 Max. Swing 30.3″ Swing Over Carriage 23.2″ Max. Turning Diameter 22.4″ Max Shaft Length 41.1″ Bar Capacity 6.5 X-Axis Travel 14.3″ Z-Axis Travel 43.5 Spindle Nose A2-11″ Spindle Speed 20 2,000 rpm (2-Speed GB) Turret Configuration 12 Stations Rapid Traverse 550/710 ipm Tail Stock Dia. / Quill Stroke / TS Body Travel 4.7″ / 4.7 / 39.4 Main Motor 40/50 hp. (cont /50% duty) Machine Weight 19,800 lbs. Equipped With 21″ 3-Jaw Hydraulic Chuck Chip Conveyor Manuals

Specifications

ManufacturerDoosan Daewoo
ModelPUMA - 400C
ConditionUsed
Swing30.3"
Chuck21"
Bar capacity6.5"
